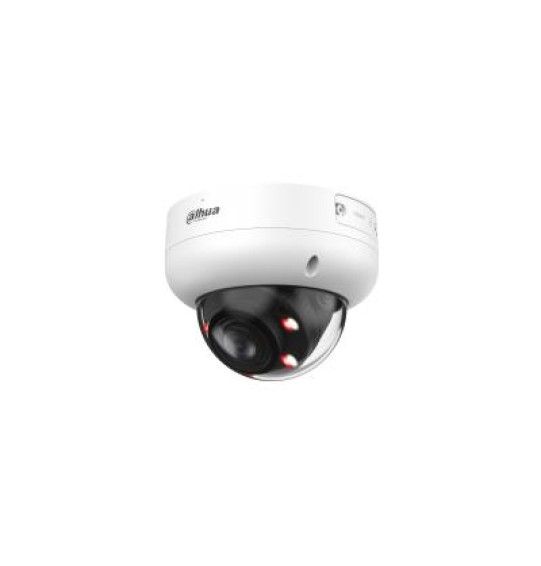

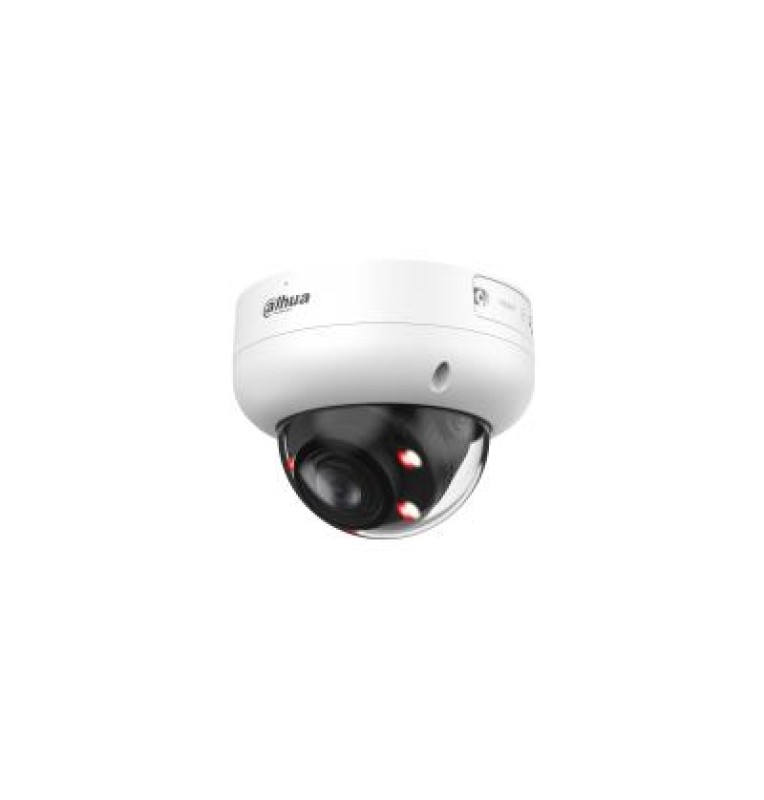

NET CAMERA 6MP DOME/HDBW3649R-ZAS-IL-27135 DAHUA
- Tootja: DAHUA
- Mudel: DH-IPC-HDBW3649R-ZAS-IL-27135
- Saadavus: Hetkel otsas
> 6-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 6 MP (3288 × 1850)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in multi-core light, the max. IR distance is 50 m and the max. warm light distance is 50 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection,video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in Mic.
> 12 VDC/PoE power supply.
> IP67, IK10 protection.
> SMD 4.0.
> Supports AI SSA.
> SMD area can be set in warm light areas that support triggering alarms.
> Focal Length 2.7 mm-13.5 mm, Field of View 114°–32°
> Outputs max. 6 MP (3288 × 1850)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in multi-core light, the max. IR distance is 50 m and the max. warm light distance is 50 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection,video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in Mic.
> 12 VDC/PoE power supply.
> IP67, IK10 protection.
> SMD 4.0.
> Supports AI SSA.
> SMD area can be set in warm light areas that support triggering alarms.
> Focal Length 2.7 mm-13.5 mm, Field of View 114°–32°
| Peamised omadused | |
| Unit Calculated Weight | 0.74 kg |
| Product Net Weight | 0.56 kg |
| Units per Shipping Box | 1 |
| Colour | White |
| Pixel Resolution | 6 Mega Pixel |
| Unit Calculated Volume | 0.003352 cubm |
| Model | IPC-HDBW3649R-ZAS-IL-27135 |
| Dimensions | 94.0 mm × Φ122.0 mm |
| Power consumption | 9.8 Watts |
| Power supply requirements | 12 VDC/PoE (802.3af) |
| Sensor size | 1/2.7" CMOS |
| Min. Illumination | 0.0005 Lux |
| Effective pixels | 3288 (H) × 1850 (V) |
| Operating temperature range | –30 °C to +60 °C |
| Focal Length | 2.7 mm-13.5 mm |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| IR Illumination | Yes |
| Network Camera Type | HDTV/Megapixel/Outdoor |
| Camera design | Dome |
| Supports card capacities up to | 512GB |
| Input/Output connectors | |
| Microphone | Built-in |
| Lisaks | |
| Garantii | 36 kuud |
