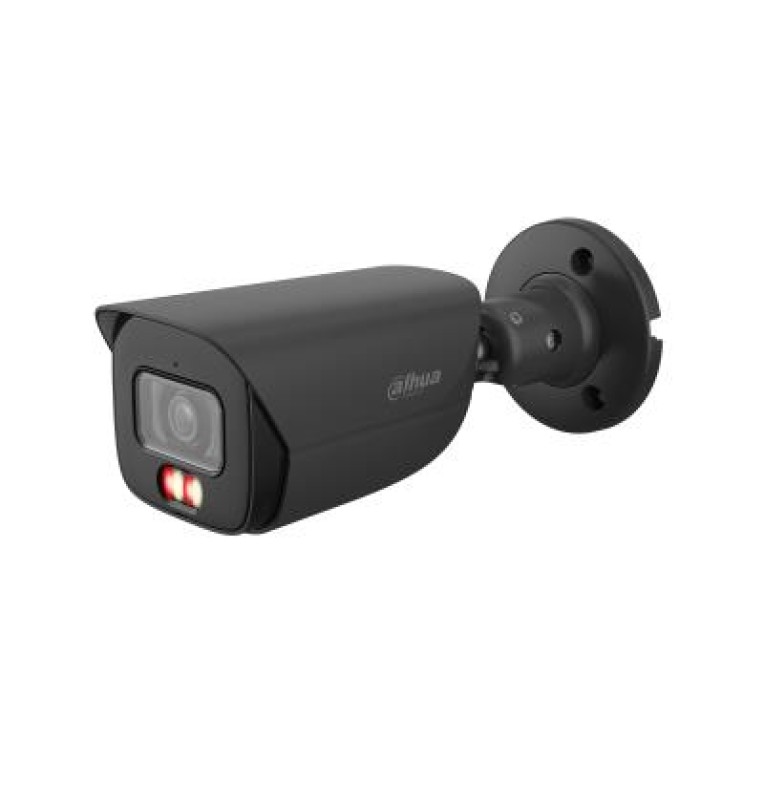

NET CAMERA 6MP BULLET/HFW3649E-AS-IL-0280B-B DAHUA
- Tootja: DAHUA
- Mudel: IPC-HFW3649E-AS-IL-0280B-B
- Saadavus: Hetkel otsas
> 6-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 6 MP (3288 1850)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in multi-core light, the max. IR distance is 30 m and the max. warm light distance is 30 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection; face detection (full image).
> Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in Mic.
> 12 VDC/PoE power supply.
> IP67 protection.
> SMD 4.0.
> Supports AI SSA.
> SMD area can be set in warm light areas that support triggering alarms.
> Focal Length 2.8 mm. Field of View 110°
> Outputs max. 6 MP (3288 1850)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in multi-core light, the max. IR distance is 30 m and the max. warm light distance is 30 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection; face detection (full image).
> Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in Mic.
> 12 VDC/PoE power supply.
> IP67 protection.
> SMD 4.0.
> Supports AI SSA.
> SMD area can be set in warm light areas that support triggering alarms.
> Focal Length 2.8 mm. Field of View 110°
Peamised omadused | |
Unit Calculated Weight | 0.77 kg |
Product Net Weight | 0.61 kg |
Units per Shipping Box | 1 |
Colour | Black |
Pixel Resolution | 6 Mega Pixel |
Unit Calculated Volume | 0.002205 cubm |
Dimensions | 192.7 mm 70.5 mm 66.4 mm |
Power consumption | 8 Watts |
Sensor size | 1/2.7" |
Min. Illumination | 0.0005 Lux |
Effective pixels | 3288 (H) × 1850 (V) |
Operating temperature range | –40 °C to +60 °C |
Focal Length | 2.8 mm |
Lens Mount | M12 |
Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
Network Camera Type | HDTV/Megapixel/Outdoor |
Camera design | Bullet |
Environment | Outdoor |
Power options | 12V/PoE |
Supports card capacities up to | 512GB |
Input/Output connectors | |
Audio-In | 1 |
Audio-Out | 1 |
Microphone | Built-in |
RJ45 | 1 |
Alarm In | 1 |
Alarm Out | 1 |
Lisaks | |
Garantii | 36 kuud |
