Kirjeldus

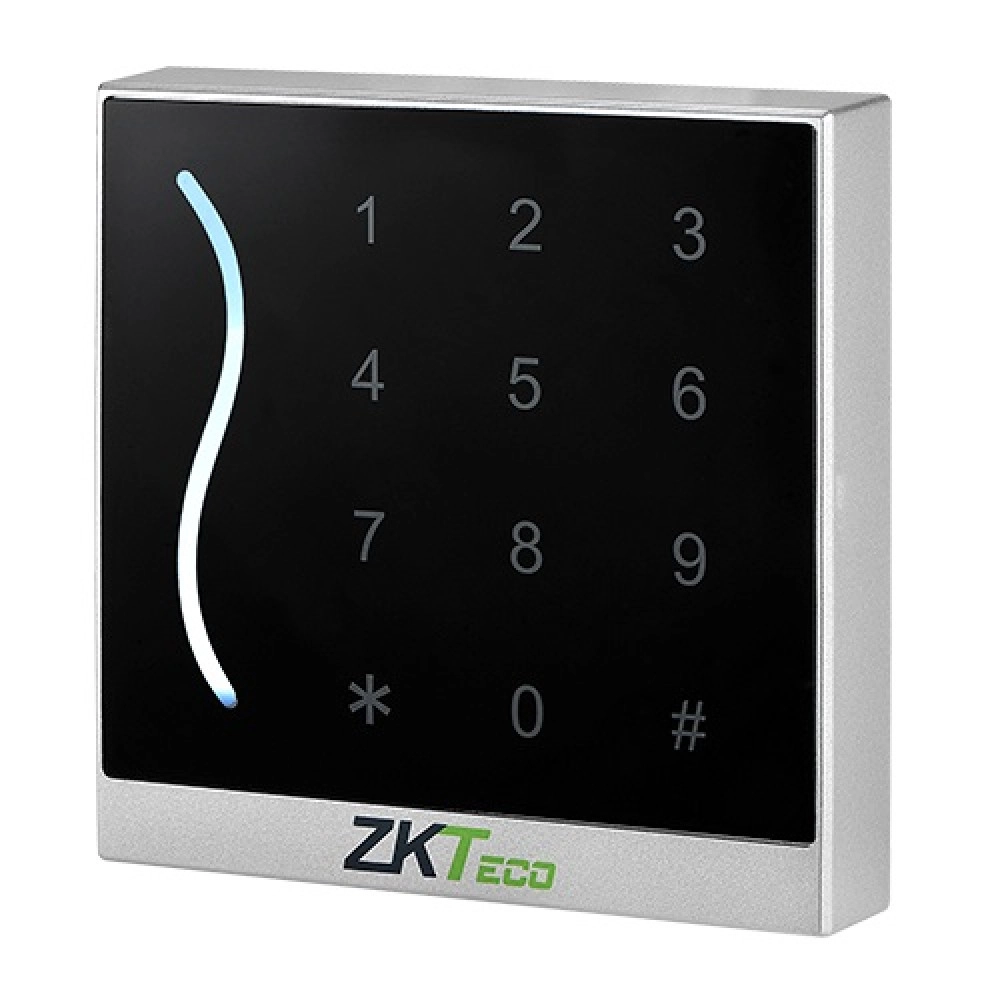

RFID card reader 13.56MHz, Wiegand 26 with PW touch keypad. Features: 13.56 MHz ISO14443A card reader suitable for ID cards. With its elegant and robust design, the reader is easy to plug in and install and can be easily mounted on a metal door frame. Supports one door control from both sides. LED (red, green) indicator shows allowed / denied access. IP65 waterproof and with an operating temperature range of -10°C to +65°C, it is suitable for both indoor and outdoor installation.
Technical specification: Operating frequency: 13.56 MHz. Scanning distance: up to 5 cm. Scan speed: up to 300ms. Output protocol: Wiegand 26bit. Current: <70mA. Voltage: 7-13V DC. Safety class: IP65. Material: ABS, PC. Operating temperature: -10°C~+65°C. Operating humidity: 10% - 90% RH. Dimensions: 90 x 90 x 16mm.
Warranty: 24 months.
