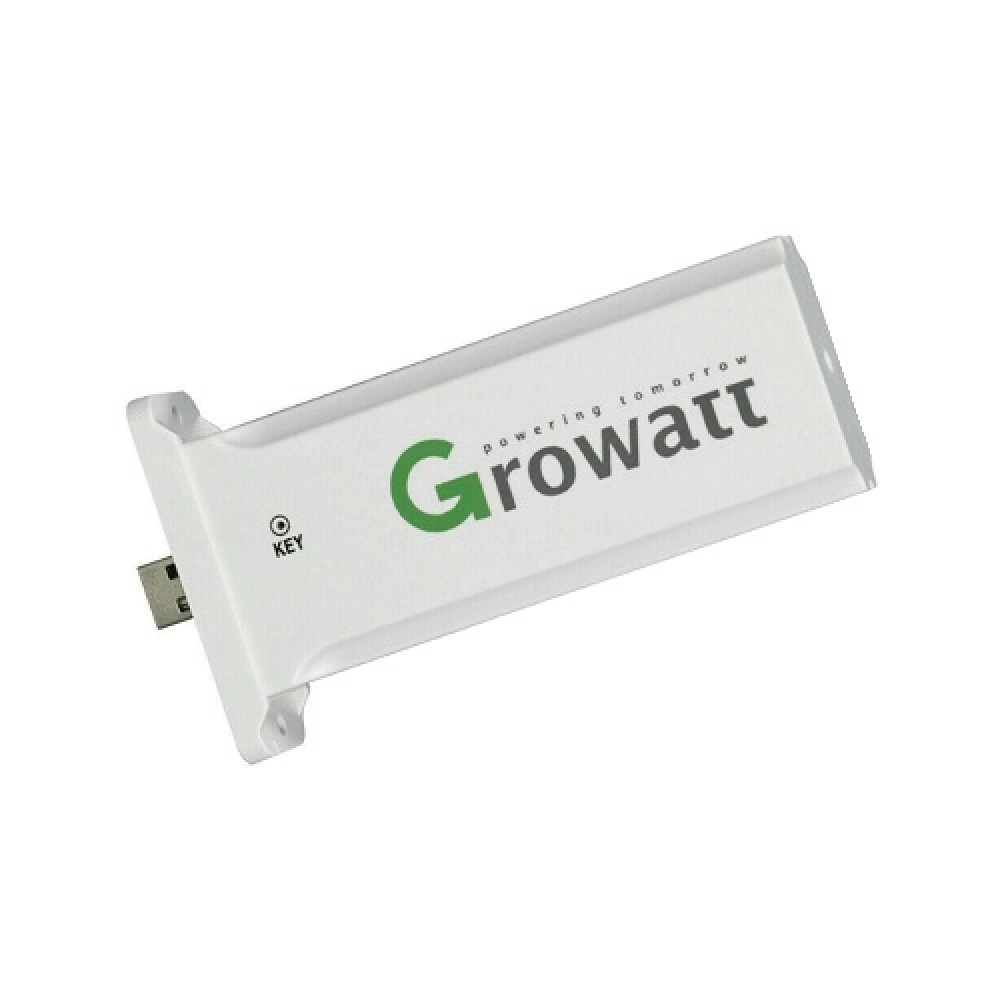

Wi-Fi Interface GROWATT Shine WiFi-F

Wi-Fi Interface Growatt Shine WiFi-F
Features: The interface is designed to link the Growatt inverter parameters to the Cloud server via Wi-Fi and monitor the operation of the solar power plant and produced energy. The device is installed on the solar inverter to remotely detect and potentially troubleshoot PV system failures. USB stick with 50m coverage and built-in memory connects your PV system to Wi-Fi. The data of the connected inverter is saved for 30 days, in the event of an internet failure. Suitable for all Off-grid Growatt inverters.
Technical specifications: Support network: Wi-Fi 2.4GHz. Max. communication range: 100m. Wi-Fi wireless standard: IEE802.11 b/g/n. Transmit power: 802.11b: +20dBm(max); 802.11g: +18dBm(max); 802.11n: +15dBm(max). Receiver sensitivity: 802.11b: -89dBm(max); 802.11g: -81dBm(max); 802.11n: -71dBm(max). Operating poltage: 5V. Operating current: 1A. Interface: USB Type-A. Data Interface: UART 9600bps; Ethernet 100Mbps. Network Type: Access Point; Station Mode with Soft AP. Security: WEP / WPA-PSK / WPA2-PSK / WAPI. Encryption: WEP64 / WEP128 / TKIP / AES. Supported server: ShineServer (server-cn.growatt.com). Data transmission interval: 5 min. Operating temperature: -20°C ~ +65°C. Dimensions: 135x79x29 mm. Weight: 63g.
Warranty: 12 months.
