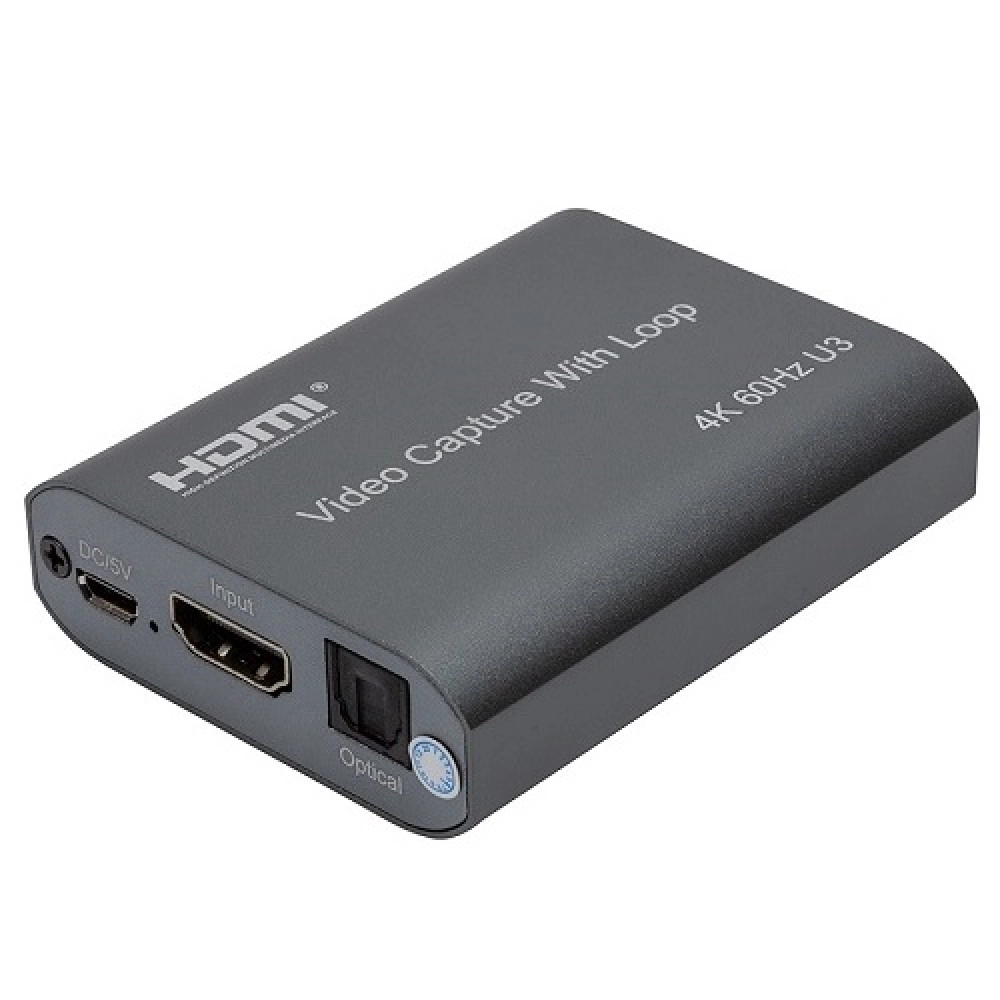

Video Capture with Loop HDMI USB3.0, 4K 60Hz

Video capture with loop HDMI USB3.0 4K/60Hz HDMI video capture device can capture high definition video and audio. It can output high definition signal to a monitor or projector. It can support USB storage on computer at the same time. An HDMI video capture device can separate high-definition video and audio signals. Separate coaxial or fiber optic digital audio signal can be connected to the amplifier. The maximum resolution can reach 4K/60Hz. Features: Supports maximum resolution up to 4K@60Hz. Support the maximum data transfer rate of 6Gbps and the TMDS clock frequency can reach 600MHz. Deep color support. HDMI cable support AWG26 standard: HDMI input up to 8 meters, HDMI output up to 8 meters (for resolution 1080P and below). Supports standard USB 3.0 cable, output up to 1.5m. Supports many recording programs such as VLC, OBS, Amcap, etc. Complies with USB video 1.5 and USB audio 1.0 standards. Supports receiving uncompressed YUY2 (USB3.0) signal. Specifications: HDMI resolution: up to 4K@60Hz. USB standard: 3.0. Video format support: Deep color. Audio format support: LPCM. Maximum bandwidth: 600MHz. Maximum data transfer speed: 6Gbps. Input cable distance: (1080p resolution) <8m, HDMI cable AWG26. Output cable distance: (1080p resolution) <8m, HDMI cable AWG26, <1.5m USB3.0. Maximum operating current: 0.7A/5VDC. Operating temperature: -10°C~+55°C. Size: 55x70x20 mm. Weight: 62 g. Warranty: 12 months.
