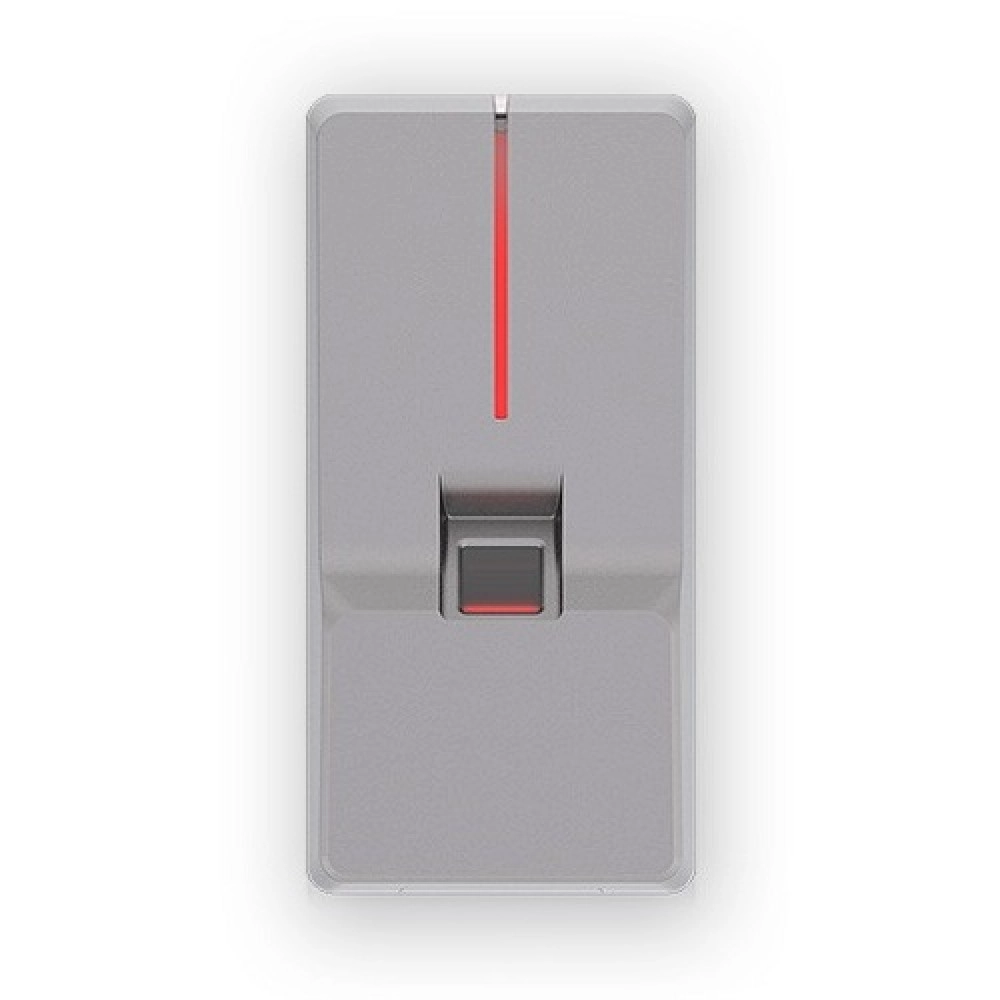

Standalone Fingerprint Access Control + Card Reader, EM/HID/MF/NFC/CPU

Standalone fingerprint access control with card reader sKey 2, EM/HID/MF/NFC/CPU, IP65.
Features: It is a biometrical single entry standalone access control with fingerprint and remote card reader. The access control is designed for outdoor conditions (-20°C~+60°C), with IP65 water and dust resistance, suitable for outdoor or indoor use. Supports 125KHz EM / HID or 13.56MHz Mifare / NFC / CPU cards (optional). Support 4bit / 8bit keypad connection. The door controller can authenticate users with several authentication modes such as fingerprint and card to provide a higher level of security. Remote control included.
Technical specification: Number of users (cards/PINs): 20.000 (21 admin). Fingerprint capacity: 219 users + 21 admin. PIN length: 4-6 digits. Operating frequency: 125KHz (EM/HID cards) / 13.56MHz (Mifare/NFC/CPU cards ISO14443A). Card reader: EM / HID / Mifare / NFC / CPU. Operating voltage: DC 10~14V. Idle current: <50mA. Card reading distance: 2~5 cm. Number of doors supported: 1. Output protocol: 26/66bit Wiegand. Wiring connections: relay, exit button, door sensor, door bell, alarm. Relay: 1 (for lock, No, Nc, Com contacts). Adjustable relay output time: 0-99 seconds. Safety class: IP65. Installation: wall mount. Material: zinc alloy. Operating temperature: -20°C~+60°C. Relative humidity: 0%~95%RH. Dimensions: 170 x 83 x 35 mm.
. Warranty: 24 months.
