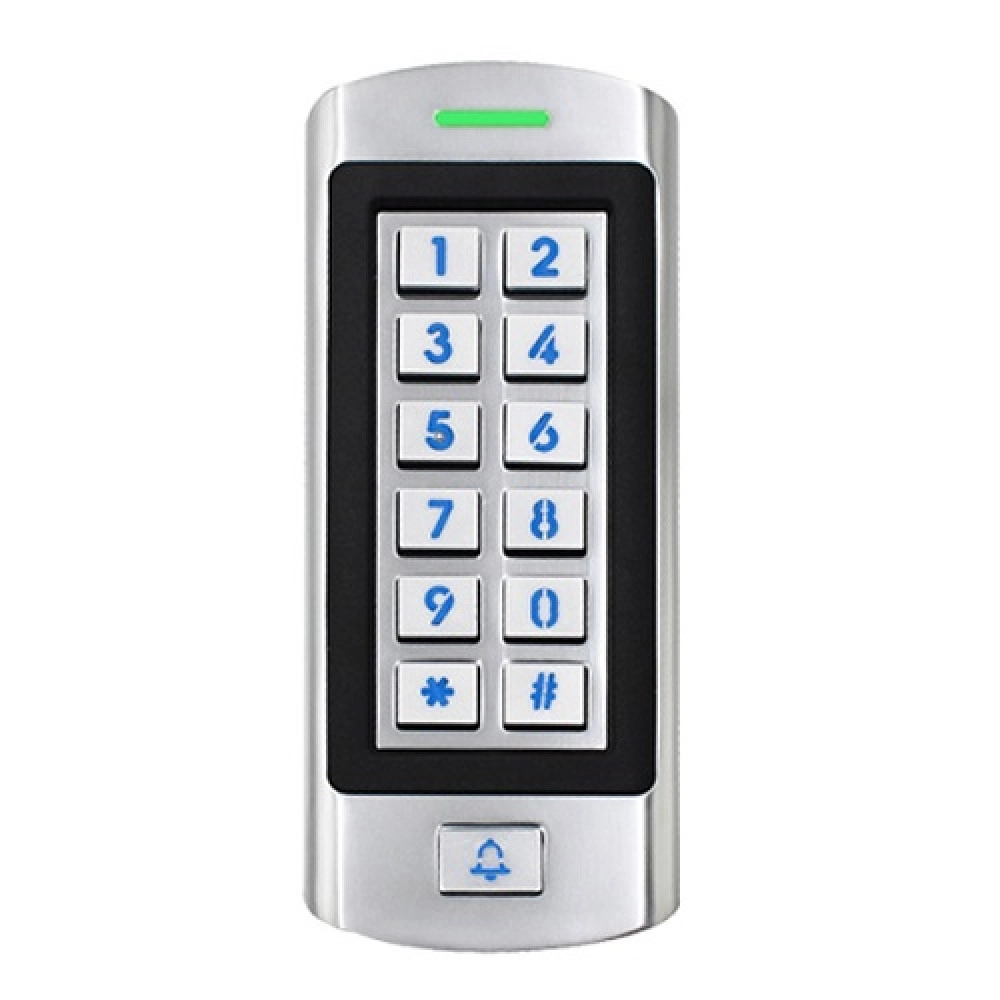

Standalone Access Control with Keypad and Card Reader, 125KHz EM

Standalone access control with integrated keypad and card reader, 125KHz EM, IP66.
Features: Compact single entry standalone access control with keypad and remote card reader. The RFID access control is designed for extreme weather conditions (-40°C~+60°C), suitable for outdoor as well as indoor use. Metal case anti-vandal. Anti-tamper alarm. Backlit keypad for use in the dark. Supports 10 visitor users with 1 to 10 entries. 3 access modes: card, PIN or card+PIN. Supports 125KHz EM cards.
Technical specification: Number of users (cards/PINs): 1.000 (990 common users + 10 visitors). PIN length: 4-6 digits. Operating frequency: 125KHz. Card reader: EM. Operating voltage: 2-18 V DC. Idle current: <50mA. Active current: <80mA. Card reading distance: 2~6 cm. Number of doors supported: 1. Wiring connections: relay output, exit button. Relay: 1 (for lock, No, Nc, Com contacts). Adjustable relay output time: 0-99 seconds (5 seconds default). Alarm output load: 3A max. Safety class: IP66. Installation: wall mount. Material: zinc alloy. Operating temperature: -40°C~+60°C. Relative humidity: 10%~90%RH (non-condensing). Dimensions: 136 x 56 x 25 mm. Weight: 425g.
. Warranty: 24 months.
