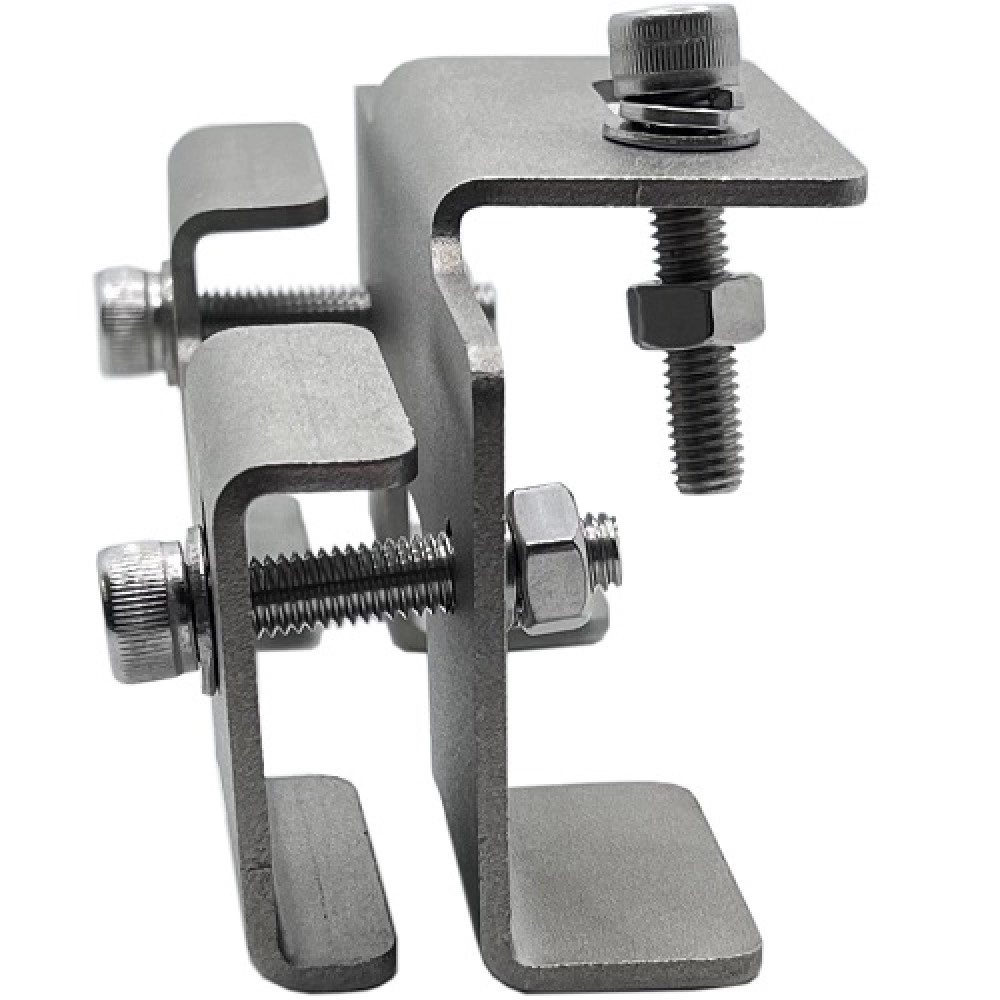

Solar Bracket for Classic Standing Seam Roof (Click)

Standing seam roof bracket for solar panels, stainless steel, with bolts and washers Features: The solar panel bracket is designed for standing seam sheet metal roofing (Click-lock type). It is adapted for direct mounting of PV rails onto standing seam sheet metal roofs. Made of stainless steel, it offers high resistance to corrosion and mechanical impact. Easy installation: the bracket clamps onto the standing seam of the metal roof and is secured with bolts – no roof penetrations are required. The bracket does not crush or deform the metal seam. Application: the bracket can be used as an adapter for rails to which solar mounting structures are attached. The set includes fastening elements made of austenitic stainless steel: M8x50 bolts, nuts, flat washers, and spring washers. They perform connection, support, and locking functions, ensuring that the solar modules are firmly fixed to the bracket and can be adjusted as needed. Simple, fast, and economical installation. The bracket’s design provides flexibility for the installer. This is a universal bracket suitable for standing seam sheet metal roofs and compatible with many solar mounting system products.
Technical specifications: Material: Stainless steel A2-70, grade 304. Application: Standing seam sheet metal roofing. Bracket dimensions: 140x67x73 mm. Bolt dimensions: Ø7.5 mm x 49 mm. Bracket weight: 333 g. Total weight: 489 g (with bolts). Set contents: 2 bracket parts, 3x bolts, 3x nuts, 3x flat washers, 3x spring washers.
