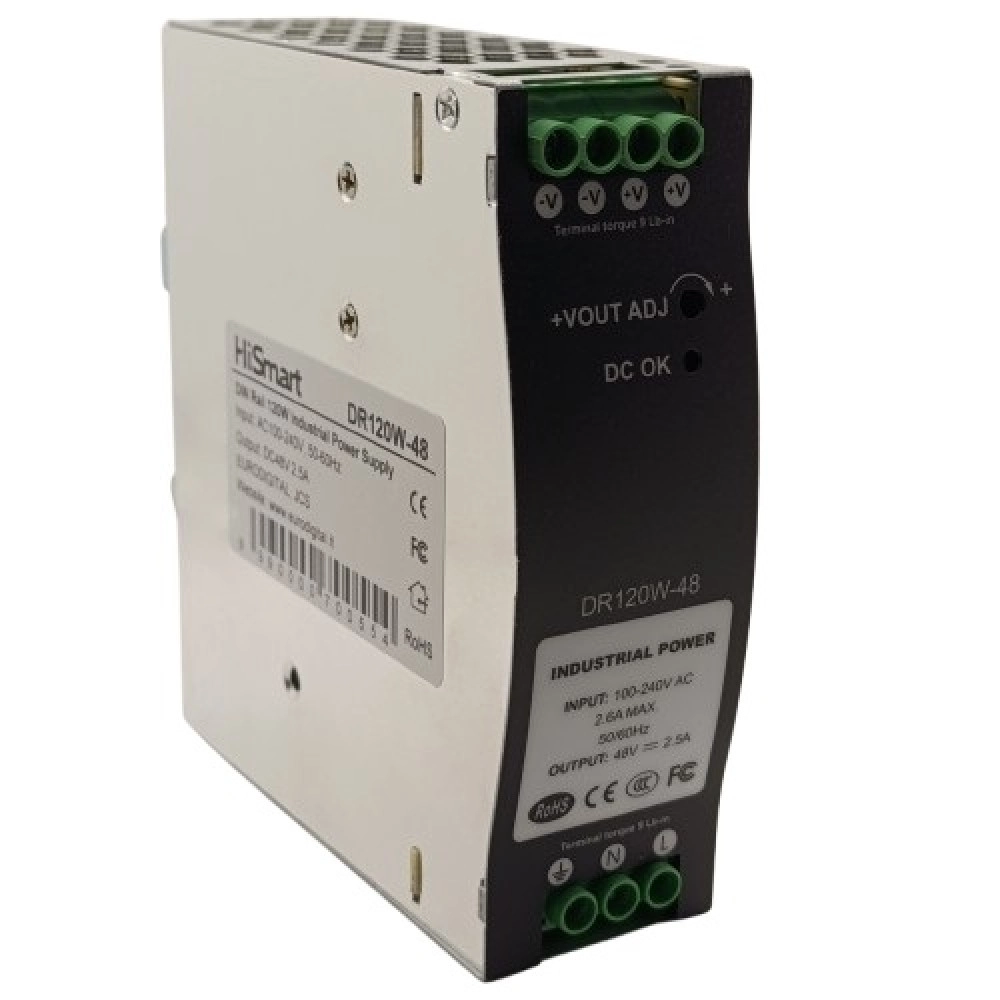

Power supply 48V, 2.5A, 120W, DIN.
Features: Economical slim 60W DIN Rail industrial power supply. Can be installed on DIN rails: TS-35/7.5 or TS-35/15. Cooling by free air convection. Operation at the ambient temperature between -30°C to 70°C. Protections: short circuit / overload / over voltage. High efficiency, durability, reliability, narrow profile. Meets the EU standards EMC for harmonic current emissions EN61000-3-2.
Specifications: Input range AC: 90-264V. Frequency 47-63Hz. Output voltage DC: 48V. DC voltage adjustable range: 47 ~ 56V. Rated current: 2.5A. Rated power: 120W. AC current: 2.2A/115V, 1.1A/230V. Ripple and noise: 100mV p-p. Efficiency: >91%. Leakage current: <0.25mA / 264V AC. Operating temperature: from -30°C to + 70°C. Operating humidity: 20% -95% RH. Dimension: 135x121x40mm. Certificates: RoHS, CE.
Warranty: 24 months.
