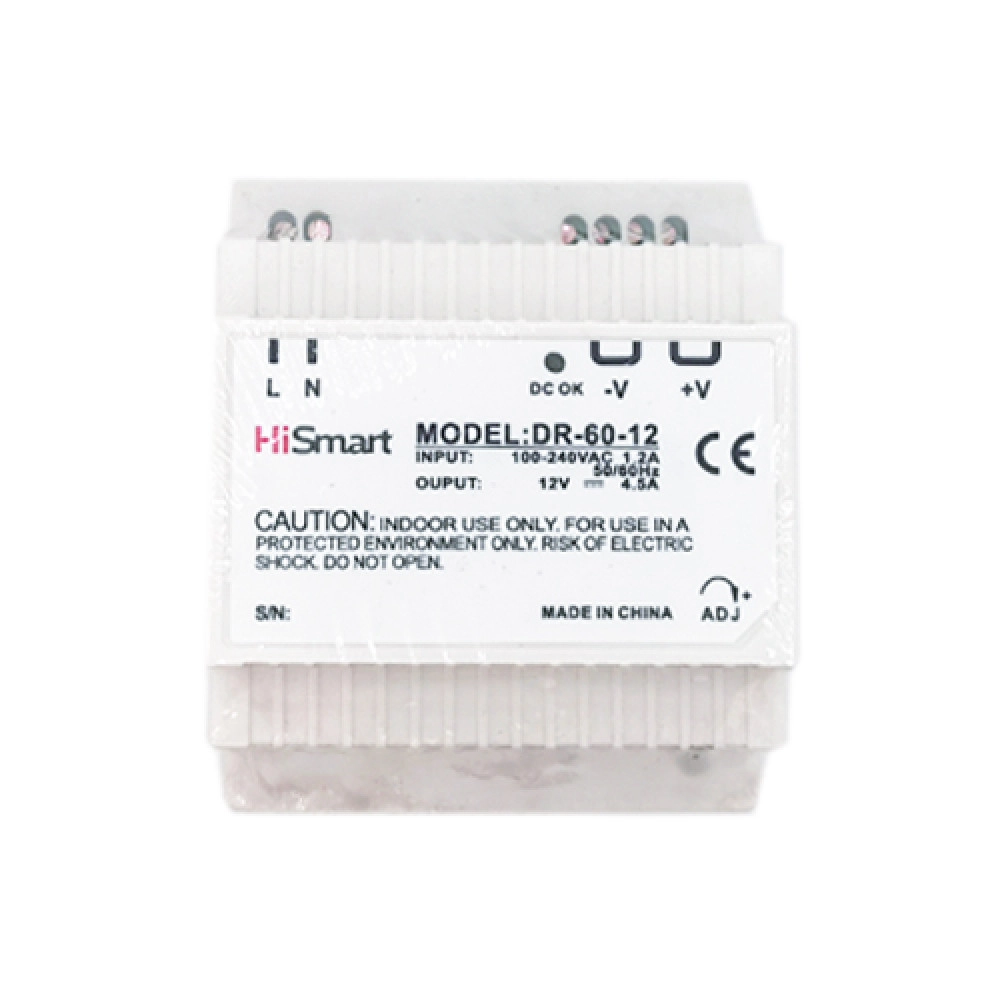

Power supply 12V, 4.5A, 60W, DIN.
Features: Power supply operating in pulse mode. Can be installed on DIN rail: TS-35/7.5 or TS-35/15. Cooling by free air convection. Protections: short circuit / overload / over voltage. Small volume,low weight,high efficiency.
Specifications: Type: switching power supply. Input range AC: 90-264V. Frequency 47-63Hz. Output voltage DC: 12V. DC voltage adjustable range: -9% /+10%. Rated current: 4.5A. Rated power: 54W. AC current: 1.2A/115V, 0.65A/230V. Ripple and noise: 100mV p-p. Effieciency: 82%. Leakage current: <1mA / 240V AC. Working temperature: -20°C~+60°C. Working humidity: 20%-90%RH. Dimension: 78x93x56mm. Weight: 0.3kg.
Warranty: 24 months.
