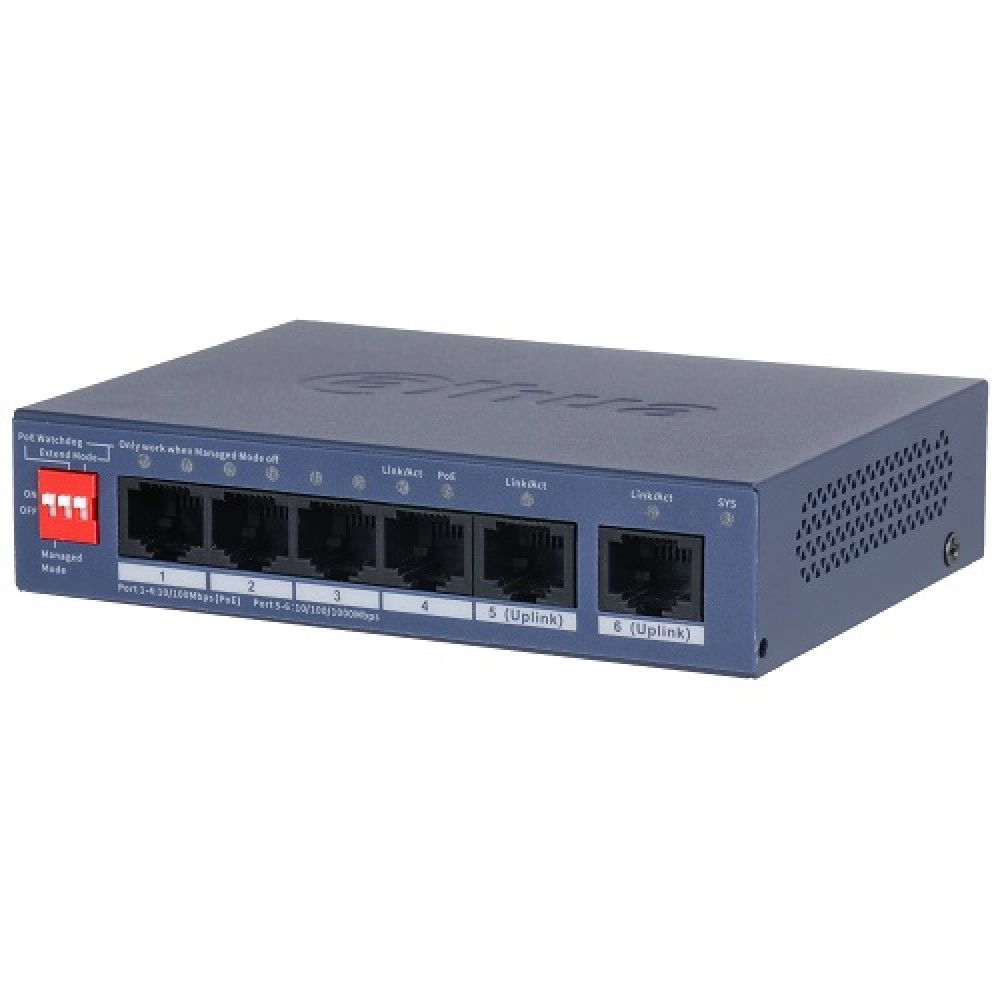

PoE switch 100Mbps 4+2G uplink CS4006-4ET2GT-36
PoE switch 100Mbps 4+2G uplink CS4006-4ET2GT-36
PoE switch 100Mbps 4+2G uplink CS4006-4ET2GT-36

PoE switch 100Mbps 4+2G uplink CS4006-4ET2GT-36

0 arvamust
€52.21
Maksa 3-s võrdses osas
3 x 17.40 € / kuus.
Järelmaks 6 kuud
8.70 € / kuus.
Tootja: DAHUA TECHNOLOGY CO., LTD
Mudel: 4006-4ET2G36
Saadavus: 8

Võimalikud valikud

Kirjeldus

6-Port Cloud Managed Desktop Switch with 4-Port PoE Overview: Cloud Managed Switch is a layer-2 switch that has a long-distance PoE function. It can supply power to devices up to 250 meters away. The orange port supplies up to 60 W and the red port provides up to 90 W. Devices can be managed through the DoLynk Care app and performs real-time monitoring of the network. The app also displays the status of devices, triggers alarms for errors in real time and sends notifications. The DoLynk Care app is developed based on DoLynk Care Cloud Server. The Switch is applicable for use in a wide variety of scenarios, such as in homes, factories and offices. Model: CS4006-4ET2GT-36. Functions: • Meets the requirements of IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab standards. • Meets the requirements of IEEE802.3af, IEEE802.3at power supply standards. • Manages PoE power consumption and PoE power on/off. Supports Intelligent PoE. • A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof. Technical Specification: Included Power Adapter: Yes. Switching Capacity: 4.8 Gbps. Packet Forwarding Rate: 3.57 Mpps. Description of Function Slots: Port 1-4: 4x RJ–45 10/100 Mbps; Port 5-6: 2x RJ-45 10/100/1000 Mbps (uplink). PoE: Yes. Power Supply: External power supply: 53 VDC, 0.8 A. Operating Temperature: –10°C to +55°C. Operating Humidity: 5%–95% (RH), non-condensing. Storage Temperature –40°C to +70°C. Storage Humidity 5%–95% (RH), non-condensing. Power Consumption Idling: <3 W; Full load: 42.4 W. MTBF: 232.62 years. Packet Buffer Size: 4 Mbit. MAC Table Size: 2K. PoE Protocol: IEEE802.3af; IEEE802.3at. Communication Standard: IEEE 802.3; IEEE 802.3u; IEEE 802.3X; IEEE 802.3ab. PoE Power: Port 1-4 < 30 W; Total < 40 W. PoE Power Consumption Management: Yes. PoE Pin Assignment: 1, 2, 4, 5 (V+), 3, 6, 7, 8(V–). Long Distance PoE Transmission: Yes. Statics Protection: Air discharge: 8 kV; Contact discharge: 6 kV. Lighting Protection: Common mode: 6 kV; Differential mode: 0 kV. Weight: 0.19 kg. Product Dimensions: 115 mm × 84 mm × 27 mm (4.53" × 3.33" × 1.06") DIP switch: Yes. Reset button: 1. VLAN Function: Port-based VLAN. VLAN Number: 32. DHCP Function: DHCP Client. Equipment Management: Web management; App management; Cloud Management.

Item specifics

  • Авто MDI/MDI-X Да
  • Вес 490 g
  • Входящее напряжение постоянного тока 48 - 57 V
  • Высота 30 mm
  • Глубина 100 mm
  • Диапазон относительной влажности при эксплуатации 10 - 90%
  • Диапазон температур при эксплуатации -10 - 55 °C
  • Количество RJ-45 Ethernet портов для основного подключения 8
  • Количество портов Gigabit Ethernet (медные) 8
  • Коммутационная способность 20 Gbit/s
  • Материал корпуса Металл
  • Питание по Ethernet (PoE) Да
  • Поддержка 10G Нет
  • Поддержка управления потоками Да
  • поддержка функции auto-aging для MAC адреса Да
  • поддержка функции auto-learning для MAC адреса Да
  • Размер адресной таблицы 8000 записей
  • Светодиодные индикаторы Да
  • Скорость передачи 11,9 Mpps
  • Стандарты сети IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
  • Тип RJ-45 Ethernet портов для основного подключения Gigabit Ethernet (10/100/1000)
  • Тип свивки медного Ethernet 10BASE-T, 100BASE-TX, 1000BASE-T
  • Тип свича Неуправляемый
  • Уровень свича L2
  • Цвет товара Черный
  • Ширина 190 mm
