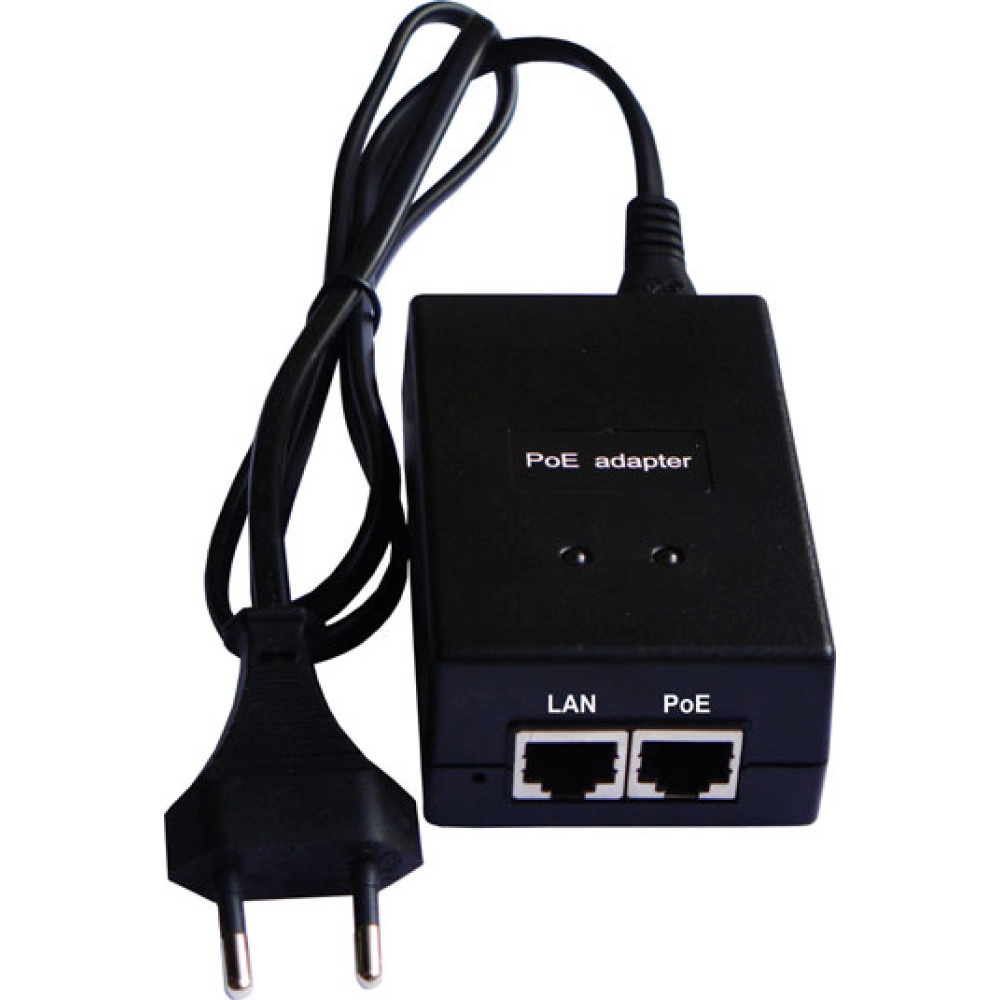

PoE injector 1ch POE-004, 48V, 0,4A

Features: • Complies with IEEE 802.3/802.3u 10/100Base-T • Provides 48Vdc via pairs 4,5(+)& 7,8(-) of RJ-45 cable and for power supply safety • Distance up to 100 meters • Provides up to 15.4W of Power over Ethernet Technical Specifications: • AC VOLTAGE: 90Vac TO 264Vac INPUT • FREQUENCY: 47Hz TO 63Hz • AC CURRENT: 0.6A MAX. • INRUSH CURRENT: 40A MAX. AT 115Vac AND FULL LOAD, COLD START, 25°C. • OUTPUT VOLTAGE: +48Vdc • OUTPUT TOLERANCE: 45.6V~50.4V • RIPPLE & NOISE: 480mVp-p • LOAD: MIN 0A MAX0.4A • RISE TIME: 50mS MAX. • HOLD-UP TIME: MINIMUM 10mS AT 80% MAX LOAD, 115Vac INPUT • Efficiency: THE SWITCHER SHOULD PROVIDE DC CONVERSION EFFICIENCY MINIMUM 80% • OVERSHOOT: OVERSHOOT SHOULD NOT EXCEED 10% OVER NOMINAL VOLTAGE • Operating Temperature: 0°C~40°C • Operating Humidity: 20%~90% (Non-Condensing)
