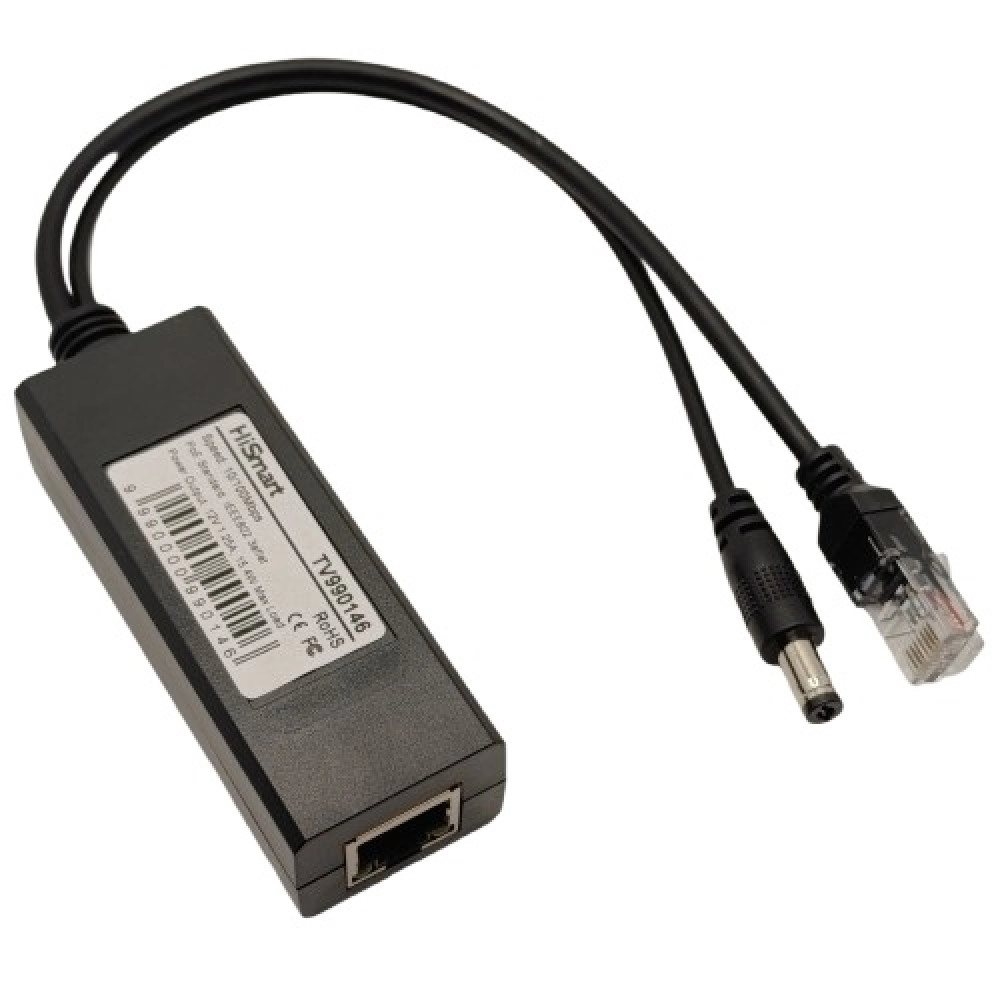

PoE 100M Splitter Cable 15.4W.
Features:
1x RJ45 female input port + 1x RJ45 male output port + 1x DC (5.5x2.1mm) male output port.
Supports IEEE802.3af, compatible with Mid-Span(4,5+; 7, 8-) and End-Span(1,2+; 3,6-).
Voltage input range: 44-57V, power output: 15.4W, with over 82% efficiency.
Support isolation function.
Default voltage output: 12V.
High voltage isolation: 1500V (Input stage to output stage).
Protections: short circuit / over voltage / over-temperature.
Specifications:
Connectors:
1x RJ45 F input port.
1x RJ45 M output port.
1x DC M output port.
PoE voltage Input: 44-57V.
Voltage output: DC 12V.
Working temperature: -20°C~+60°C.
Working humidity: 20-80% RH.
Rated power output: 15.4W.
Transmission bandwidth: 10/100Mbps.
Efficiency:
Warranty: 24 months.
