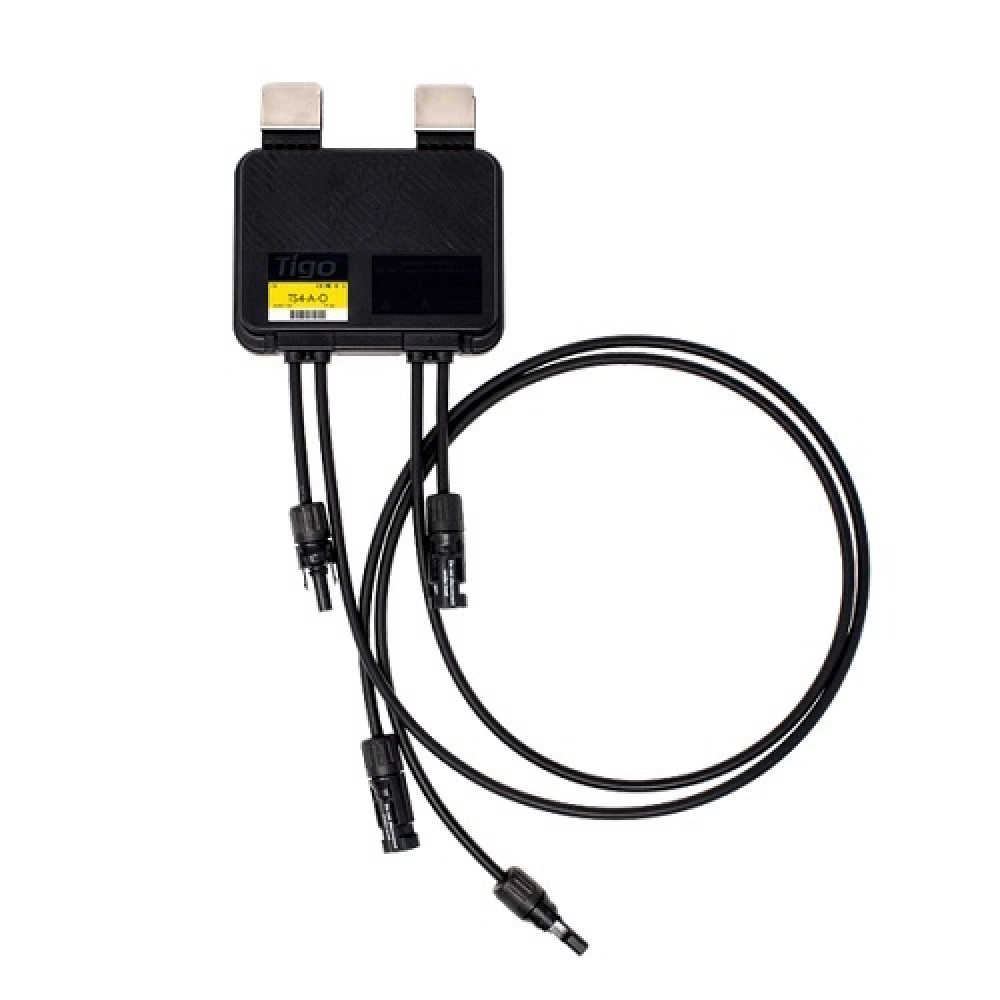

Optimizer TIGO TS4-A-O, 700W, 15A

Tigo TS4-A-O is the advanced add-on solution that brings smart module functionality to standard PV modules, including optimization, rapid shutdown, and module-level monitoring.Note: Required components: Cloud Connect Advanced (CCA) and Tigo Access Point (TAP).
Features: Suitable for up to 700W solar modules.The higher performance optimizer with Predictive IV Technology (PIV).The ONLY optimizer with selective deployment.Includes the benefits of safety and monitoring.Meets NEC rapid shutdown requirements.Optimizes right out of the box.Shade and age tolerance to maximize lifetime yield.Works wirelessly with the TAP & CCA.
Specifications:Max power: 700W.Maximum Input Voltage (Voc): 80V.Input voltage range: 16-80V. Max Input Current (Imax): 15A.Max system voltage: 1000V.Max short circuit current (Isc): 20A.Communication: wireless.Connectors: MC4.Conductor AWG range: 10-12AWG.Wire length: input 0.12m, output 1.2m.Working temperature: -40°C ~ +70°C.Safety class: IP68, NEMA 3R.Rapid shutdown standards: NEC 2014, 2017, 2020 / NEC 690.12.Safety standards: FCC 15b, ETSI EN 301 489, CISPR 31, CSA 22.2, IEC 62109, NEC 690.12, UL 1741 (PVRSE/PVRSS).Weight: 520g.Dimensions:138.4x139.7x22.9mm.
Warranty: 24 months.https://www.youtube.com/embed/tJoNqblnpzY
