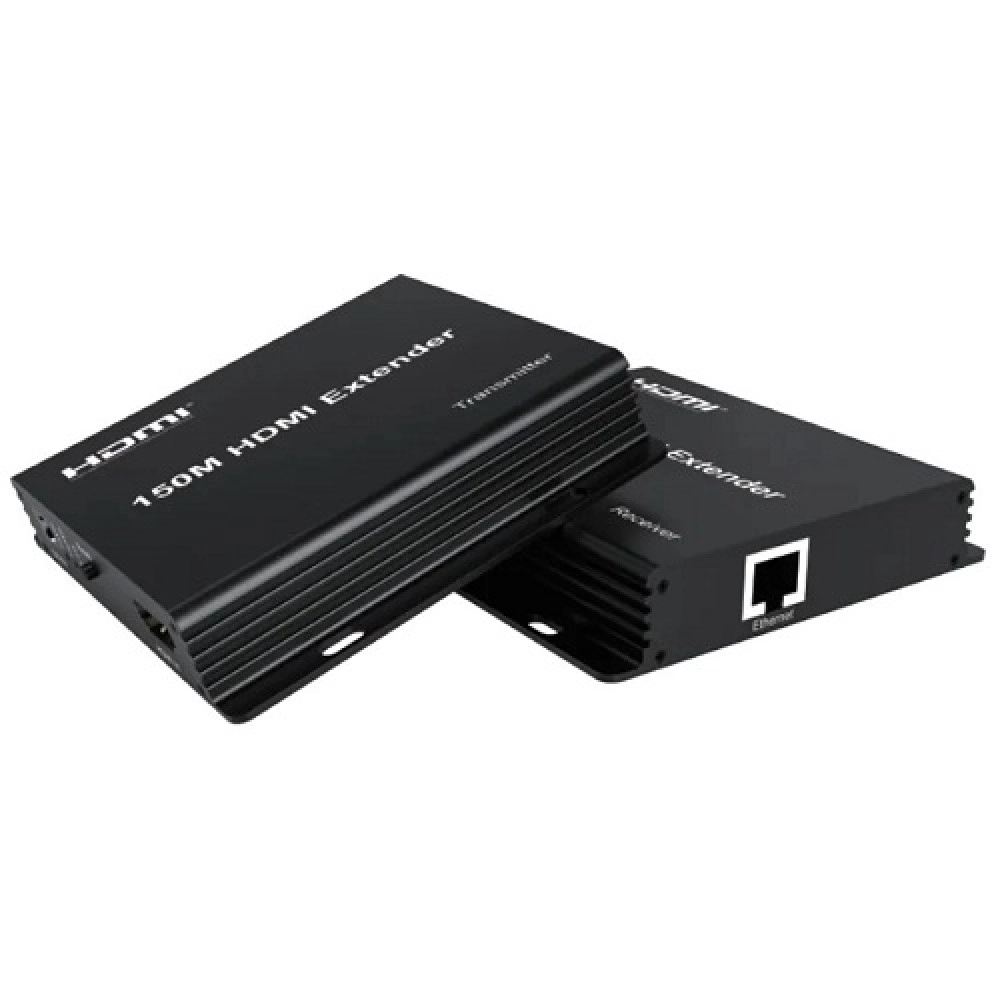

HDMI Extender 150m, 1080p

HDMI signal extender up to 150m, 1080P. The HDMI Extender uses a single Ethernet (Cat5e or Cat6) cable instead of an HDMI cable to transmit high-definition video and audio signals up to 150 meters.
Features: No compression, lossless transmission. Supports point-to-point mode and cascade connection mode. Supports HDMI signal transmission up to 150m. Low power consumption, low temperature and high safety The design of pure hardware, plug and play, no need for additional software. The HDMI interface can be effective for TV, computer screens, projectors and cameras.
Specifications: Max (CAT5e / CAT6 cable) length between transmitter and receiver: 150m. HDMI resolution: 480p, 720p, 1080p. Audio format: LPCM. Power adapter: AC (50Hz, 60Hz) 100V-240V; DC 5V / 1A. Max. bandwidth: 148.5MHz. Max. baud rate: 1Gbps. Input cable distance: up to 10m AWG26 HDMI. Output cable distance: up to 15m AWG26 HDMI. Max. working current: 380mA. Operating temperature: -0°C ~ + 45°C. Operating humidity: 10-80% RH (non-condensing). Size: 90x91x19 mm. Weight: TX120g; RX 120g.
Transmitter’s ports: DC / 5V - power supply. PWN - power indicator light. HDMI - signal indicator light. LINK - network indicator light. RESET - restart key. HDMI-IN - HDMI input. ETHERNET - network interface by CAT5e / CAT6. Receiver’s ports: DC / 5V - power supply. PWN - power indicator light. HDMI - signal indicator light. LINK - network indicator light. RESET - restart key. HDMI-OUT - HDMI output. ETHERNET - network interface by CAT5e / CAT6.
Packing list: Transmitter (TX). Receiver (RX). Power adapter x2 (5V / 1A DC). Users manual.
Warranty: 24 months.
