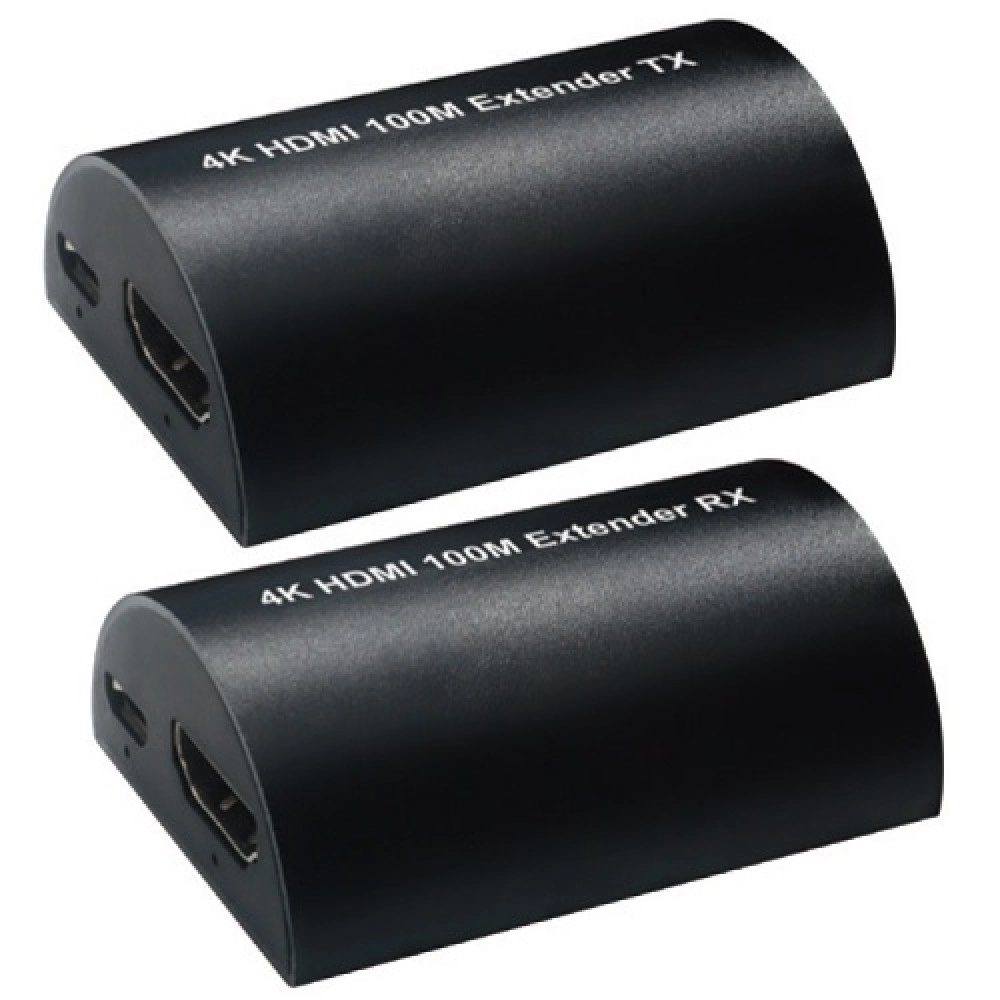

HDMI Extender 100m, 4K

HDMI extender up to 100m, 4K, HDMI cable connection up to 10m, power supply via micro USB cable. The extender uses a single Cat5e or Cat6 (recommended) cable instead of an HDMI cable to transmit a high-definition signal up to 100 meters.
Features: HDMI resolution 4K / 60Hz. Supports a maximum frequency of 3.4Gbps, bandwidth 340MHz. Supports standard AWG26 HDMI cable, input/output up to 10 meters. Supports 100m long distance transmission. Low power consumption, low temperature, high safety.
Specifications: Max (CAT5e / CAT6 cable) length between transmitter and receiver: 100m. HDMI resolution: 4K / 1080p / 1080i / 720p / 576p / 576i / 480p / 480i. HDMI AWG26 cable input / output length: up to 10m. Input video signal: 0.5-1.5V p-p. Output DDC signal: 5V p-p (TTL). Max. transmitter (TX) operating current: 350mA. Max. receiver (RX) operating current: 200mA. Max. bandwidth: 340MHz. Max. baud rate: 3x3.4Gbps. Power adapter format: AC (50Hz, 60Hz) 100V-240V; DC 5V / 1A. Operating temperature: -15°C ~ +45°C. Operating humidity: 5-90% RH. Size: 52x38x17 mm. Weight: TX 24.0g; RX 24.4g.
Transmitter ports: POWER - power input port. INPUT - HDMI input port. CAT5E/6 - CAT5e / CAT6 cable connection port. Receiver’s ports: POWER - power input port. OUTPUT - HDMI output port. CAT5E/6 - CAT5e / CAT6 cable connection port.
Packing list: Transmitter (TX) x1. Receiver (RX) x1. Micro USB cable x2.
Warranty: 24 months.
