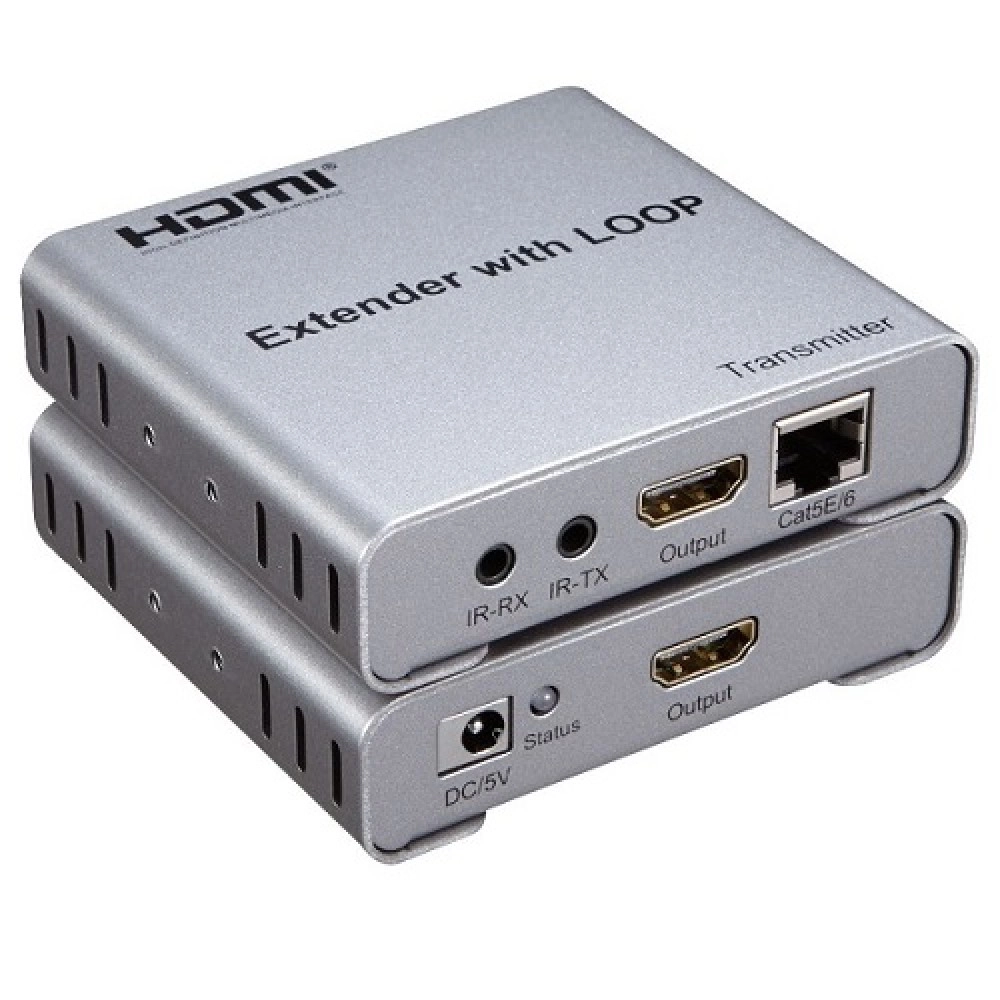

HDMI Extender 100m, 4K

HDMI signal extender to 100m, 4K, HDMI cable to 15m, IR. The Extender uses a single cat5e or cat6 (recommended) cable instead of HDMI cable to transmit high definition signal up to 100 meters.
Features: HDMI resolution 4K (3840x2160). HDMI version 1.4 b. Supports a maximum frequency of 3.4Gbps, bandwidth 340MHz. Supports standard AWG26 HDMI cable, input / output up to 10 meters. Supports 120m long distance transmission. Low power consumption, low temperature, high safety. The transmitter / receiver supports a 3.5mm audio port. IR control.
Specifications: Max (CAT5e / CAT6 cable) length between transmitter and receiver: 100m. HDMI version: HDMI 1.4b. HDMI resolution: 4K / 1080p / 720p / 576p / 576i / 480p / 480i. HDMI AWG26 cable length to transmitter (TX) / receiver (RX): up to 15m. Max. transmitter (TX) operating current: 350mA. Max. receiver (RX) operating current: 200mA. Max. bandwidth: 340MHz. Max. baud rate: 3x3.4Gbps. Power adapter: AC (50Hz, 60Hz) 100V-240V; DC 5V / 1A. Operating temperature: -15°C ~ + 55°C. Operating humidity: 5-90% RH. Size: 81x87.5x23.5 mm. Weight: TX 210g; RX 200g.
Transmitter’s ports: DC / 5V - power input port. STATUS - power and signal indicator light. OUTPUT - HDMI output. IR-TX - IR transmitter port. R / L - audio output. INPUT - HDMI input. CAT5E/6 - CAT5e / CAT6 cable connection port. Receiver’s ports: DC / 5V - power input port. STATUS - power and signal indicator light. OUTPUT - HDMI output. IR-TX - IR receiver port. R / L - audio output. CAT5E/6 - CAT5e / CAT6 cable connection port.
Packing list: Transmitter (TX). Receiver (RX). Power adapter x2 (5V / 1A DC). IR controller x2. User's manual.
Warranty: 24 months.
