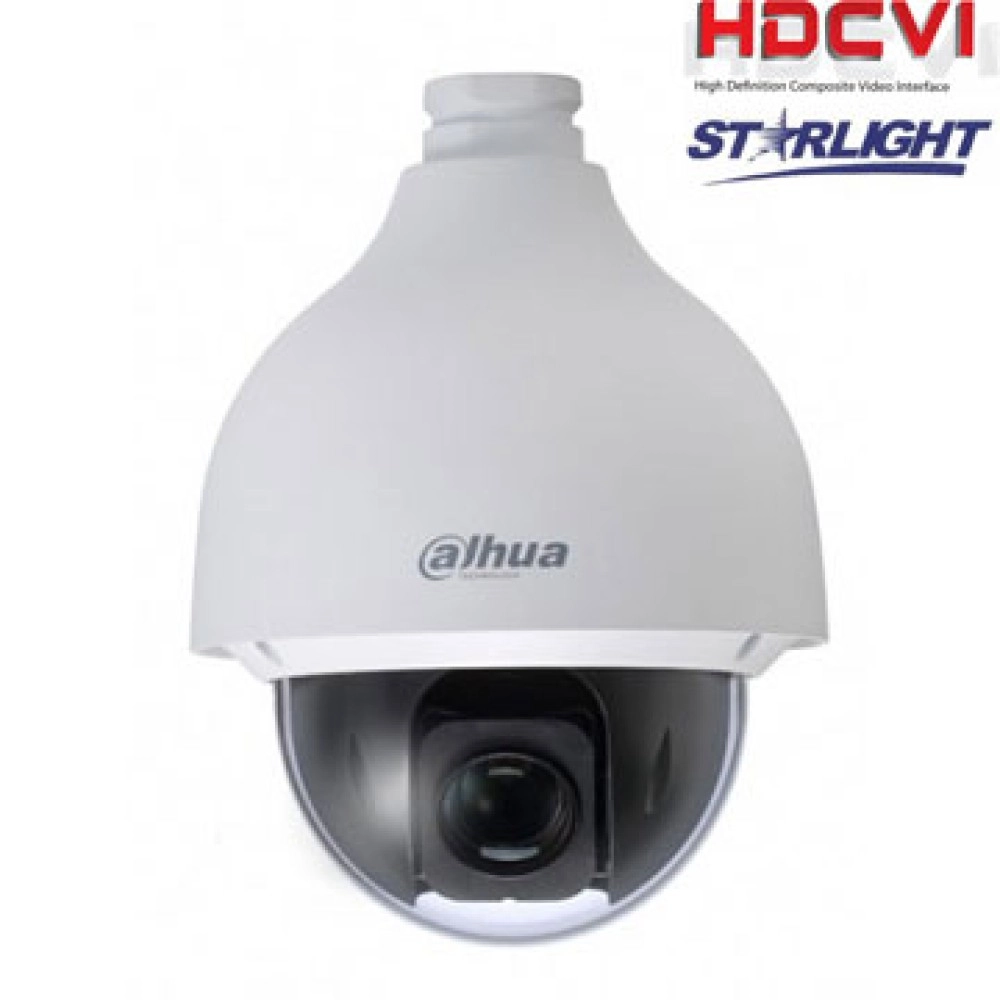

HD-CVI PTZ cam. SD50225I-HC

Features: • 1/2.8” 2Megapixel STARVIS™ CMOS • Powerful 25x optical zoom • Starlight technology • 120dB true WDR, 3D DNR • Max. 25/30fps@1080P, 25/30/50/60fps@720P • IP67, IK10 Technical Specifications: Camera • Image Sensor 1/2.8” STARVIS™ CMOS • Effective Pixels 1920(H) x 1080(V), 2 Megapixels • Scanning System Progressive • Electronic Shutter Speed 1/3s~1/300,000s • Minimum Illumination Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6 • S/N Ratio More than 55dB • IR Distance N/A • IR On/Off Control N/A • IR LEDs N/A Lens • Focal Length 4.8mm~120mm • Max. Aperture F1.6 ~ F4.4 • Angle of View H: 59.2° ~ 2.4° • Optical Zoom 25x • Focus Control Auto/Manual • Close Focus Distance 100mm~ 1000mm PTZ • Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: 0° ~ 90°,auto flip 180° • Manual Control Speed Pan: 0.1° ~350° /s; Tilt: 0.1° ~250° /s • Preset Speed Pan: 500° /s; Tilt: 500° /s • Presets 300 • PTZ Mode 5 Pattern, 8 Tour, Auto Pan ,Auto Scan • Speed Setup Human-oriented focal Length/ speed adaptation • Power up Action Auto restore to previous PTZ and lens status after power failure • Idle Motion Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period • Protocol DH-SD, Pelco-P/D (Auto recognition) Video • Resolution 1080P(1920×1080)/720P(1280×720) • Frame Rate 25/30fps@1080P, 25/30/50/60fps@720P • Video Output 1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (switchable) • Day/Night Auto(ICR) / Color / B/W • OSD Menu Support • Backlight Compensation BLC / HLC / WDR (120dB) • White Balance Auto,ATW,Indoor,Outdoor,Manual • Gain Control Auto / Manual • Noise Reduction Ultra DNR (2D/3D) • Digital Zoom 16x • Flip 180° • Privacy Masking Up to 24 areas Certifications • CE: EN55032/EN55024/EN50130-4 • FCC: Part15 subpartB,ANSI C63.4- 2014 • UL: UL60950-1+CAN/CSA C22.2,No.60950-1 Interface • Video Interface 1 • Audio Interface 1 channel in • RS485 1 • Alarm 2/1 Electrical • Power Supply AC24V/1.5A(±10%) • Power Consumption 13W,23W (Heater on) Environmental • Operating Conditions -40°C ~ 60°C (-40°F ~ +140°F) / Less than 90% RH • Ingress Protection IP67 • Vandal Resistance IK10 Construction • Casing Metal • Dimensions ?186.0(mm) x 253(mm) • Net Weight 2.5kg(5.51lb) • Gross Weight 4.5kg(9.92lb) Accessories • PFA151; • PFA150; • PFB303S; • PFA120; • PFB300C; • PFA140.
