Kirjeldus

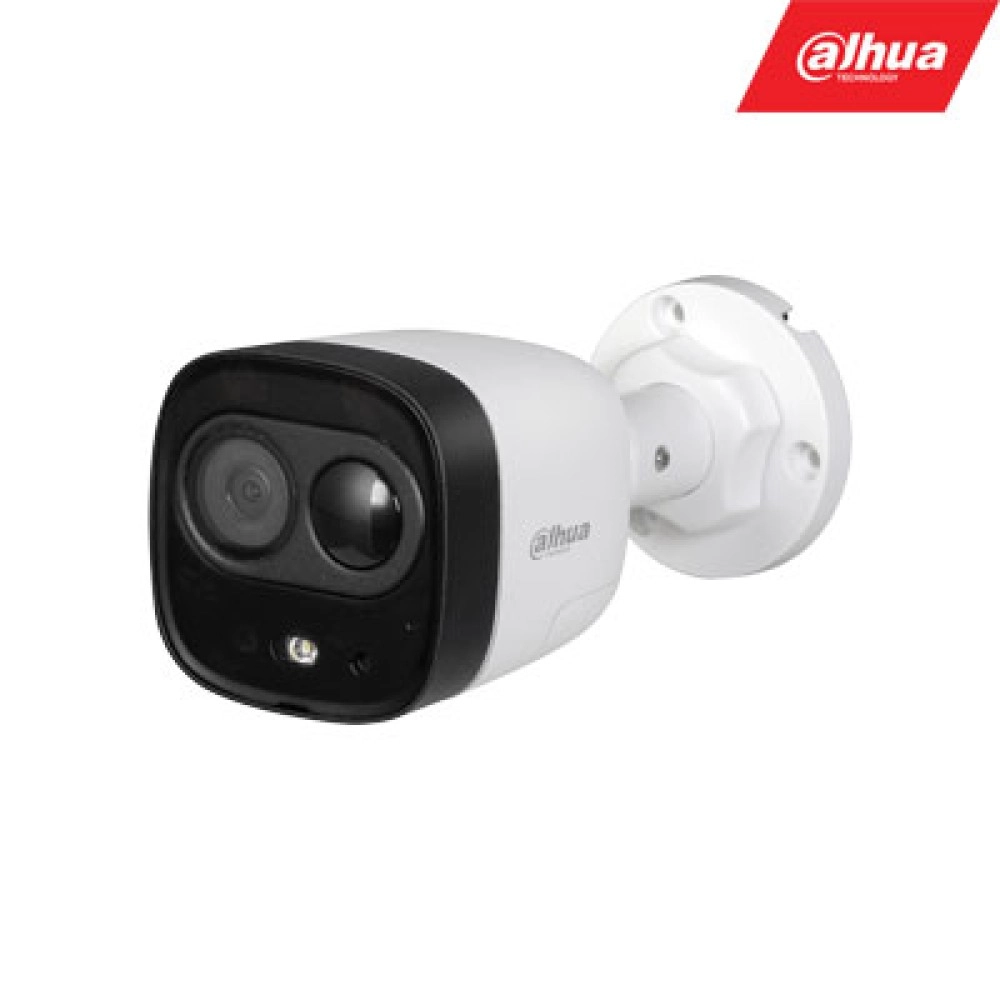

Features: • Max 30fps@1080P • HD and SD output switchable • 2.8mm fixed lens • Max. IR length 20m, Smart IR • Built-in PIR, 10m/110°detecting range/angle • Active deterrence with white light & siren • IP67, DC12V Technical Specifications: Camera • Image Sensor 1/2.7" CMOS • Effective Pixels 1920(H)×1080(V), 2MP • Scanning System Progressive • Electronic Shutter Speed PAL: 1/25~1/100000s NTSC: 1/30~1/100000s • Minimum Illumination 0.02Lux/F2.0, 30IRE, 0Lux IR on • S/N Ratio More than 65dB • IR Distance Up to 20m (66feet) • IR On/Off Control Auto / Manual • IR LEDs 1 Lens • Lens Type Fixed lens / Fixed iris • Mount Type Board-in • Focal Length 2.8mm • Max Aperture F2.0 • Angle of View H: 111°, V: 60.5° • Focus Control N/A • Close Focus Distance 700mm • Pan/Tilt/Rotation: Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotation: 0° ~ 360° Video • Resolution 1080P (1920×1080) • Frame Rate 25/30fps@1080P, 25/30/50/60fps@720P • Video Output 1-channel BNC high definition video output / CVBS video output (Can switch) • Day/Night Auto (ICR) / Manual • OSD Menu Multi-language • BLC Mode BLC / HLC / DWDR • WDR DWDR • Gain Control AGC • Noise Reduction 2D • White Balance Auto / Manual • Smart IR Auto / Manual PIR • Detection Passive infrared • Detection Range Max. 10m, 110° • Alarm prompt Whitelight & Siren • Installation height Defualt bracket, wall mount, 2.2-2.5m Certifications • CE (EN55032, EN55024, EN50130-4) • FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) • UL (UL60950-1+CAN/CSA C22.2 No.60950-1) Interface • Audio Interface Built-in mic Eelectrical • Power Supply 12V DC ±30% • Power Consumption Max 4.9W (12V DC, IR on) Environmental • Operating Conditions -20°C ~ +60°C (-4°F ~ +140°F) / Less than 95% RH • Start up should be done at above -20°C (-4°F) • Storage Conditions -20°C ~ +60°C (-4°F ~ +140°F) / Less than 95% RH Ingress Protection &Vandal • Resistance IP67 Construction • Casing Aluminium (Front cover) + Plastic (Rear Barrel) • Dimensions 168.8mm×79mm×79mm (6.65"×3.11"×3.11") • Net Weight 0.24kg (0.53lb) • Gross Weight 0.31kg (0.68lb)
