Product Description

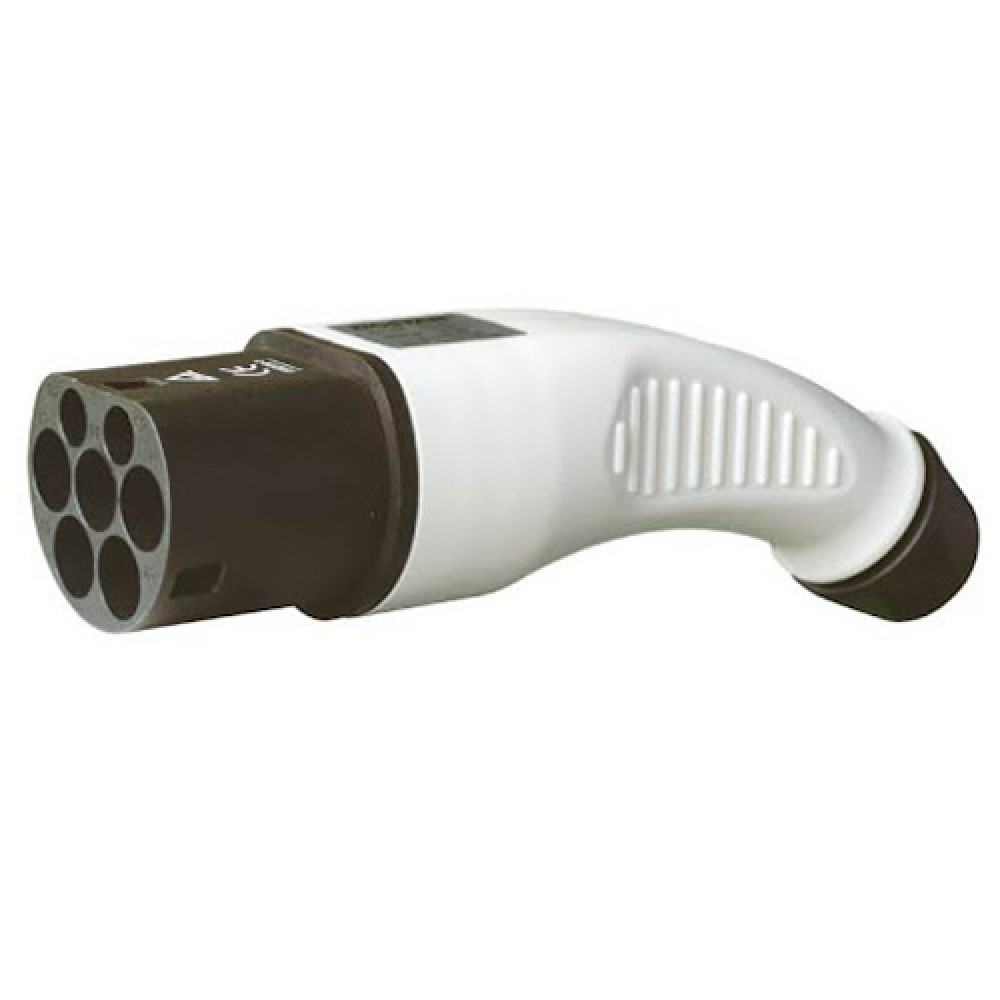

Plug for electric vehicle Type 2, 32A, (Male) (station side), 3-phase, without cable. Plug is designed to create your own charger by selecting the desired cable length and connectors.
Specifications:
EV connector type: IEC 62196, Type 2 (European), Mennekes, 7 contacts.
Rated current: 32A.
Operating voltage: 415V AC.
Maximum charging power: 22kW (3-phase).
Material: thermoplastic, fire resistance UL94 V-0.
Cable contacts: copper alloy, silver plated.
Dimensions of the applicable cable: 5x6mm² + 1x0.75mm² (3-phase).
Number of contacts 7.
Safety class: IP44.
Operating temperature: -30 ° C ~ + 50 ° C.
Certificates: CE, TUV.
Color: black / white.
Warranty: 24 months
