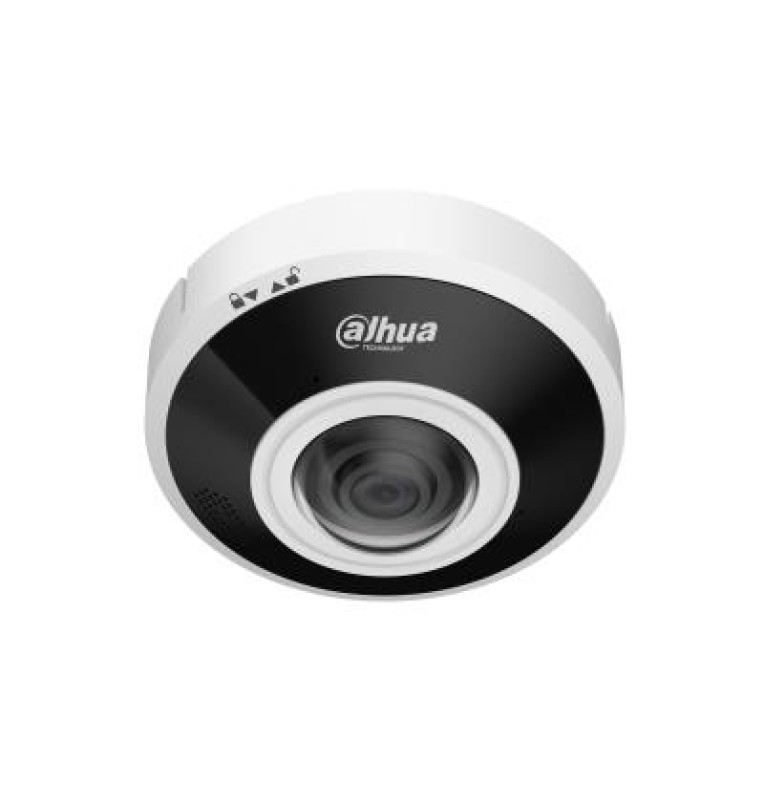

NET CAMERA 6MP FISHEYE DOME/IPC-EBW5641-AS DAHUA
- Brand: DAHUA
- Product Code: IPC-EBW5641-AS
- Availability: In Stock
> 6-MP 1/2.5" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 6 MP (2560 × 2560)@25/30 fps.
> 360° fisheye monitoring covers all the corners without any blind zone.
> Supports fisheye front-dewarp and back-dewarp.
> Supports split screen for 2 and 4 windows.
> Built-in IR LED, and the max. illumination distance is 15 m.
> ROI, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: Perimeter Protection, People Counting, Heat map.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 1TB Micro SD card;
> Built-in speaker and dual Mic. Supports two-way talk.
> 12 VDC/ PoE(802.3af) power supply.
> IP67 and IK10 protection.
> Focal Length 1.68 mm, Field of View 185*185°
> Outputs max. 6 MP (2560 × 2560)@25/30 fps.
> 360° fisheye monitoring covers all the corners without any blind zone.
> Supports fisheye front-dewarp and back-dewarp.
> Supports split screen for 2 and 4 windows.
> Built-in IR LED, and the max. illumination distance is 15 m.
> ROI, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: Perimeter Protection, People Counting, Heat map.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 1TB Micro SD card;
> Built-in speaker and dual Mic. Supports two-way talk.
> 12 VDC/ PoE(802.3af) power supply.
> IP67 and IK10 protection.
> Focal Length 1.68 mm, Field of View 185*185°
| Main characteristics | |
| Unit Calculated Weight | 0.75 kg |
| Product Net Weight | 0.46 kg |
| Colour | White |
| Pixel Resolution | 6 Mega Pixel |
| Unit Calculated Volume | 0.002062 cubm |
| Model | IPC-EBW5641-AS |
| Dimensions | Φ122 mm × 53.3 mm |
| Power consumption | 10.1 Watts |
| Power supply requirements | 12 VDC, 1 A; PoE (802.3af) |
| Sensor size | 1/2.5" CMOS |
| Min. Illumination | 0.0006 Lux |
| Effective pixels | 2560 (H) × 2560 (V) |
| Operating temperature range | –30 °C to +60 °C |
| Focal Length | 1.68 mm |
| Lens Mount | M12 |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| IR Illumination | Yes |
| Network Camera Type | HDTV/Megapixel |
| Camera design | Other |
| Environment | Outdoor |
| Power options | PoE |
| Supports card capacities up to | 512GB |
| Input/Output connectors | |
| Audio-In | 1 |
| Audio-Out | 1 |
| Microphone | Built-in |
| RJ45 | 1 |
| Alarm In | 1 |
| Alarm Out | 1 |
| Lisaks | |
| Warranty | 36 kuud |
