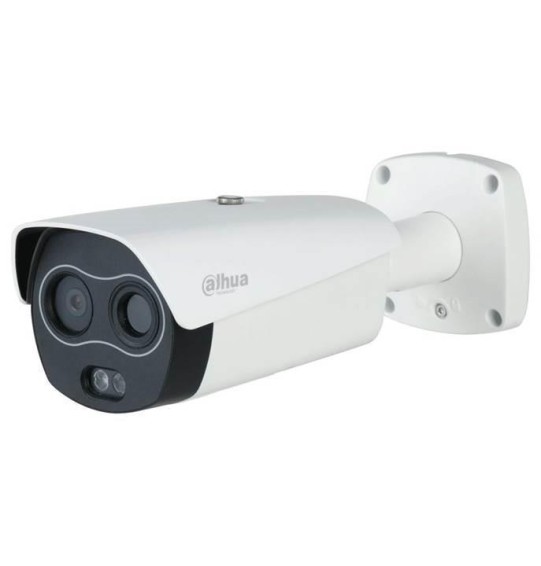

NET CAMERA 4MP HYBRID BULLET/TPC-BF2241-TB7F8-DW-S2 DAHUA
- Brand: DAHUA
- Product Code: TPC-BF2241-TB7F8-DW-S2
- Availability: In Stock
Thermal Network Hybrid Bullet Camera
> Vanadium oxide uncooled focal plane detector.
> 4Megapixel progressive scan CMOS.
> Offers various AI functions such as intrusion, target filtering, heat detection, smoking detection, and calling detection.
> Built-in white light and speaker that produce light and sound alarms to deter intruders.
> Built-in IR LED with a maximum illumination distance of 35 m.
> Dual image fusion (visible and thermal images).
> 12 VDC ± 20%/PoE power supply.
> IP67 rated.
> Vanadium oxide uncooled focal plane detector.
> 4Megapixel progressive scan CMOS.
> Offers various AI functions such as intrusion, target filtering, heat detection, smoking detection, and calling detection.
> Built-in white light and speaker that produce light and sound alarms to deter intruders.
> Built-in IR LED with a maximum illumination distance of 35 m.
> Dual image fusion (visible and thermal images).
> 12 VDC ± 20%/PoE power supply.
> IP67 rated.
| Main characteristics | |
| Unit Net Weight | 1.4 kg |
| Pixel Resolution | 4 Mega Pixel |
| Model | TPC-BF2241-TB7F8-DW-S2 |
| Dimensions | 279.9 mm × 103.8 mm × 95.8 mm |
| Power consumption | 5 Watts |
| Power supply requirements | 12 VDC, 1 A ± 20%, PoE (802.3af) |
| Sensor size | 1/2.7" CMOS |
| Min. Illumination | 0.005 Lux |
| Effective pixels | 256 (H) × 192 (V) |
| Operating temperature range | –30 °C to +60 °C (–22 °F to +140 °F) |
| Electronic Shutter Speed | 1 s–1/30,000 s |
| IR Illumination | Yes |
| Network Camera Type | Outdoor/Thermal |
| Camera design | Bullet |
| Environment | Outdoor |
| Power options | 12V/PoE |
| Supports card capacities up to | 256GB |
| Input/Output connectors | |
| Audio-In | 1 |
| Audio-Out | 1 |
| RJ45 | 1 |
| RS-485 | 1 |
| Alarm In | 1 |
| Alarm Out | 1 |
| MicroSD Card Slot | 1 |
| Lisaks | |
| Warranty | 36 kuud |
| CnCode | |
| CnCode | 85258900 |
