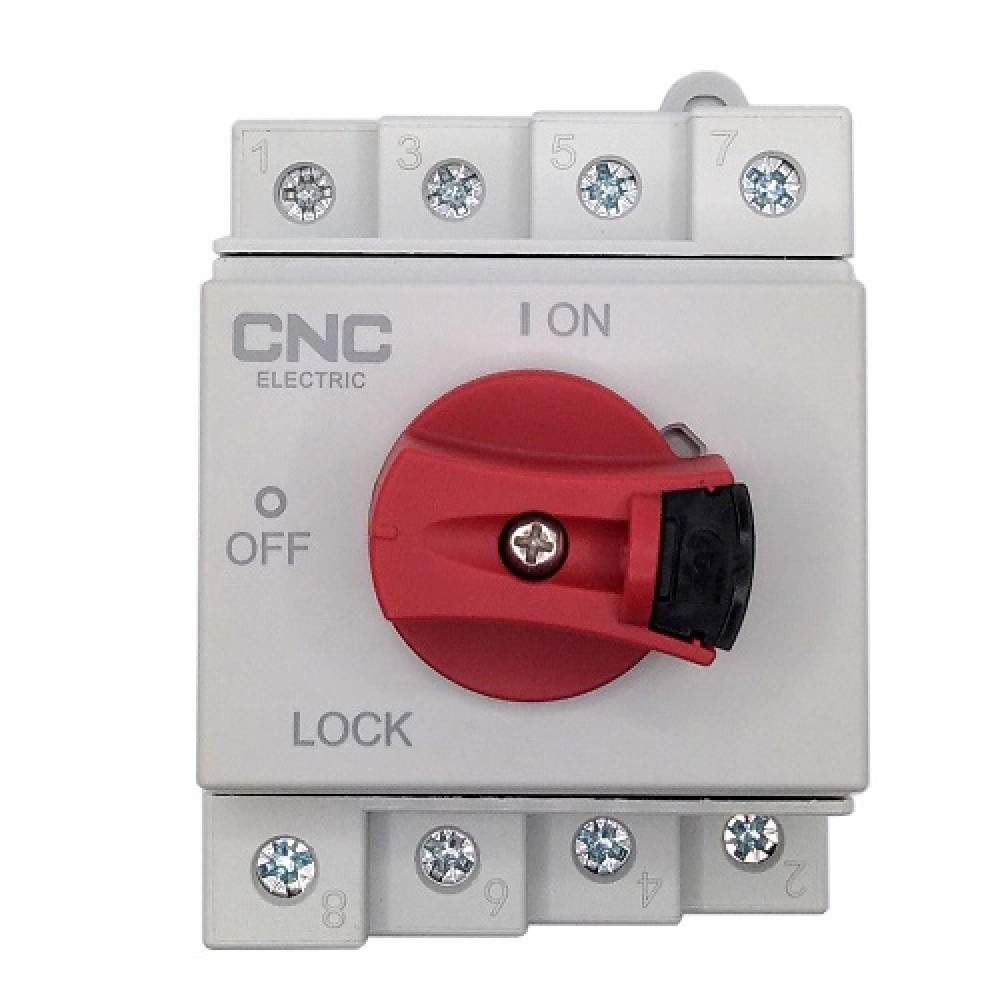

DC Isolator Switch 4P, 32A, 1000VDC, Din

DIN rail mounting DC switch up to 1000V / 32A lockable handle for safe using and maintaining. Features: 4P, 1200V, 32A. Arcing time 3ms, that make PV solar system effectively disconnected. No polarity. Lockable handle in closed posotion. Flame retardant, UV resistant. Product is used for infrequent on/off and can disconnect 1-2 MPPT lines at the same time. It is used in the control cabinet, distribution box and combiner box of the pv power generation system and used for isolation of the DC power distribution system. Standards: IEC60947-1, IEC60947-3, AS5033:2014, NZS5033:2014, UL508i.
Technical specifications: Number of contacts: 4. Rated working voltage (Ue): DC 1000V. Insulation voltage (Ui): DC 1500V. Rated current (In): 32A. Rated impulse voltage (Uimp): 8kV. Mechanical life cycles: 10000. Electrical life cycles: 3000. Installation: on a DIN rail. Connector type: M4. Wire cross-sections: max. 4-16mm2. Arcing time: 3ms. Protection class: IP20, V0. Dimensions: 94.9 x 60.2 x 78.2 mm. Operating temperature: -40°C to 85°C. Storage temperature: -40°C to 85°C.
Warranty: 24 months.
