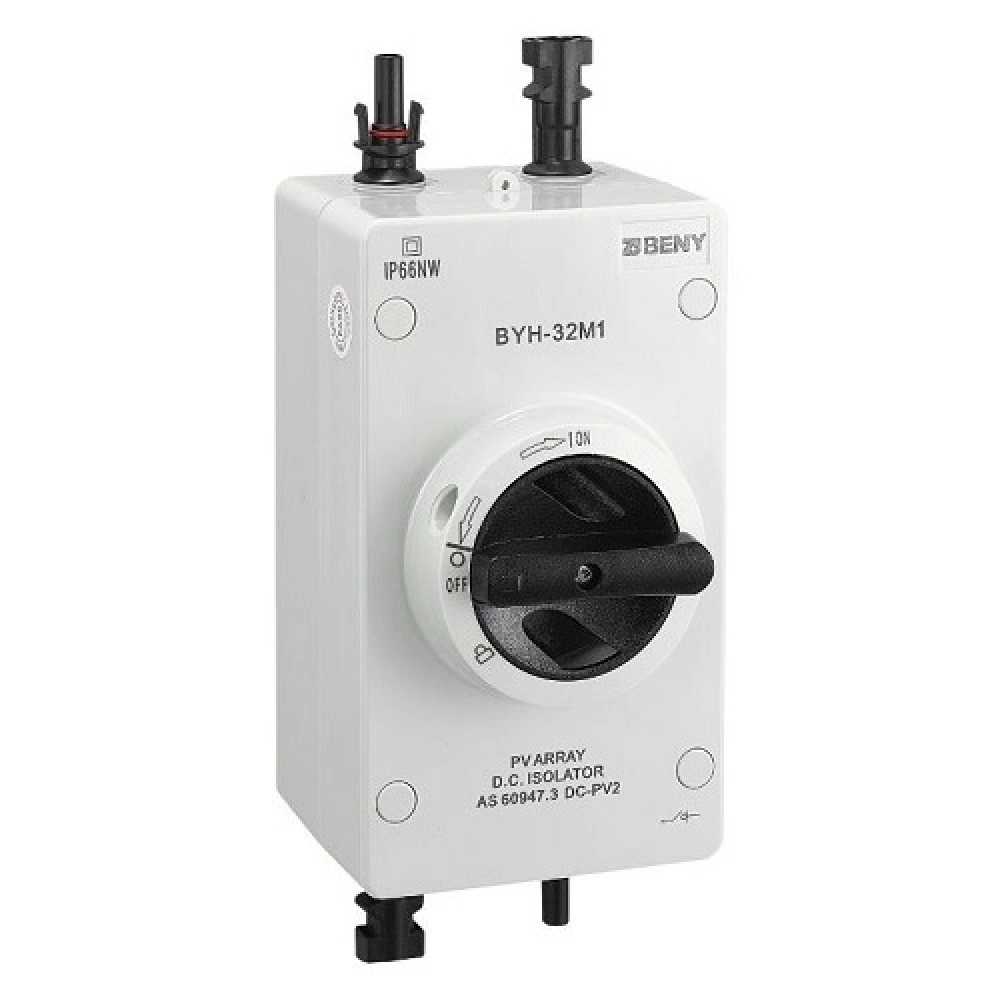

DC Isolator Switch - 2P, 32A, 1000VDC, MC4, IP66

DC isolator switch for disconnecting the DC circuit and controlling the PV installation; up to 1000V / 32A, with handle, with valve, for safe use and maintenance. Can be widely used in residential and commercial solar PV systems. It is the first DC switch compliant with AS 60947.3:2018 DC-PV2 standards and can be used worldwide in PV DC systems. Features: 2 poles, 1000V DC, 32A. No polarity. Fire retardant and UV resistant. The switch is locked in the off position. Arcing time less than 3ms, that make PV solar system effectively disconnected. A breathing valve shall be attached on the DC isolator. Pre-wired MC4 in factory avoid the loose wiring or failure installation. The DC isolator switch is wired with MC4 for faster and safer installation. Certificates: IEC/EN 60947-3, AS/NZS 5033:2014; DC-21B, DC-PV2.
Technical data: Number of contacts: 2. Rated voltage (Ue): DC 1000V. Insulation voltage (Ui): DC 1200V. Rated current (In): 16A/ 25A/ 32A. Maximum current: 32A. Rated impulse voltage (Uimp): 8kV. Mechanical life: 15000 cycles. Electrical life: 1000 cycles. Connection type: M4 (min. 1.2Nm, max. 1.8Nm). Wire cross-sectional area: max. 4-16mm2. Disconnection time: <3ms. Protection class: IP66 for housing, IP20 for switch. Dimensions: 188x99x108 mm. Operating temperature: -40°C to 85°C.
Warranty: 24 months.
