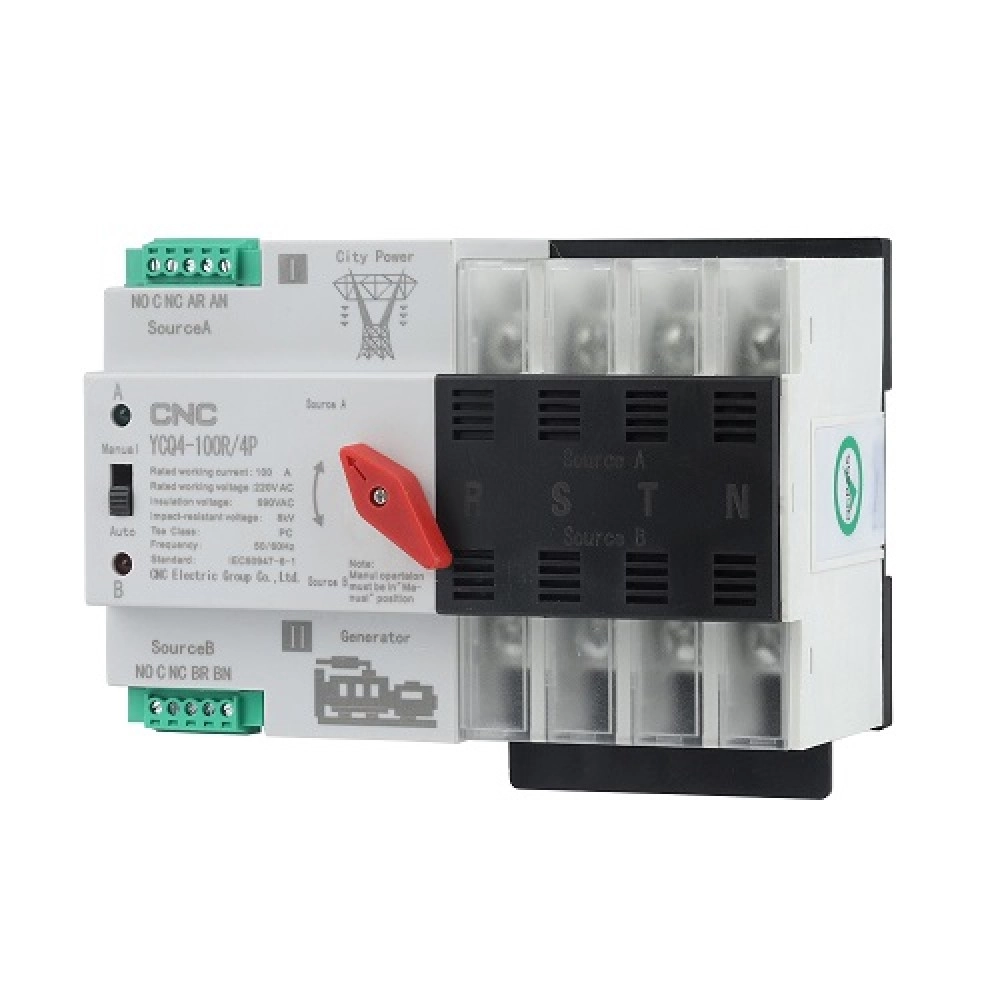

Automatic Transfer Switch CNC 4P 220V 100A

Automatic transfer switch YCQ4-100R/4P 220V 100A
Features: Automatic transfer switch 220VAC, 100A for emergency power supply system 50/60Hz, transfer time <50ms. The switch can also be operated manually. The switch complies requirements of low voltage switch gear and control gear specified by IEC 60947-6-1. Compact design, reliable switching, easy installation on a DIN rail. It is widely applicable in various occasions where continuous power failure is not allowed.
Specifications: Voltage: AC220V. Current: 100A. Frequency: 50/60Hz. Number of contacts: 4. Insulation voltage (Ui): AC 690V. Rated voltage (Ue): AC 400V. Rated conditional short-circuit current: 50 kA. SCPD (fuse): RT16-00-63A. Rated impulse withstand voltage: 8 kV. Main voltage: AC 220V. Auxiliary circuit: AC 220V. Contact transfer time: <50 ms. Operating transfer time: <50ms. Return transfer time: <50ms. Off- time: <50ms. Installation: on a DIN rail. Dimensions: 100x142x76 mm. Mechanical life: 5000 times. Electrical life: 2000 times. Weight: 656g.
Warranty: 24 months.
