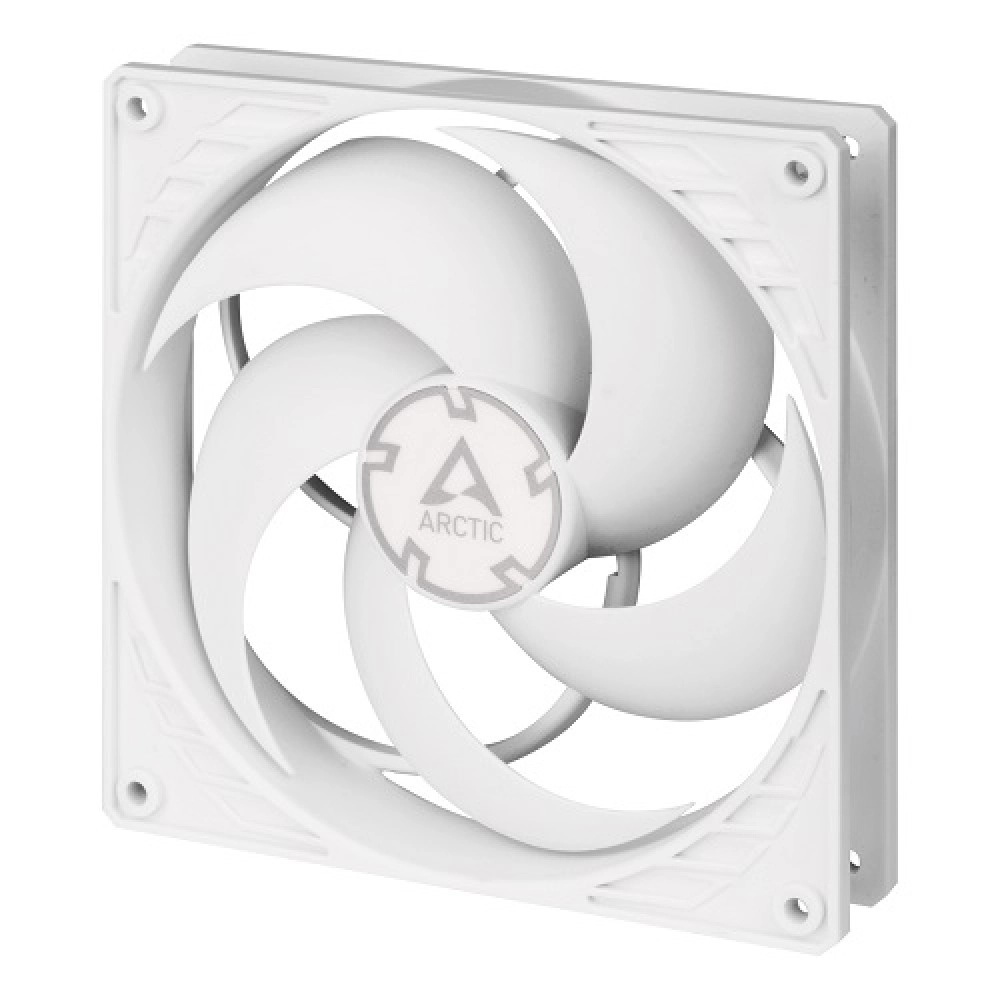

ARCTIC P14 with PWM Pressure-Optimised Fan, 4-pin, 140mm, White
€12.41
Maksa 3-s võrdses osas
3 x 4.14 € / kuus.
3 x 4.14 € / kuus.
Järelmaks 6 kuud
2.07 € / kuus.
2.07 € / kuus.
Kategooriad
Ostukorv
Konto
Otsing
Hiljutine vaatamine
Kõik kategooriad
×
- CPU
- Hair Clippers
- Home Automation
- Juurdepääsusüsteemid
- Mixers
- Network Cameras
- Server Cables
- Switches
-
Teine
- Air Conditioners
- Compact Photocameras
- Desktop POS
- Electric Car Charging
- Fan Heaters
- Fans
- Fiber Optic Cables
- Gimbal Accessories
- Handheld PDA
- HDD Video Surveillance
- Kiosk SCO
- Mobile POS
- POS Accessories
- POS Printers
- Power Strips
- Rugged Notebook Accessories
- Solar Inverters
- Water Pumps & Washers
- Windows Cleaning Robots
- Toothbrush Heads
- TV Mount Accessories
- Wireless Cameras
- Wireless Network Adapters
- Wireless Routers
Ostukorv
×
Teie ostukorv on tühi!
Minu konto
×
Otsing
×
Hiljutised vaadatud tooted
×
Kirjeldus
Pressure-optimised fan P14 with PWM, 4-pin, 140mm, white.
Features: Optimized for static pressure. During the development of the new P14 PWM, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P14 PWM is particularly suitable for use on heatsinks and radiators. High quality bearing. Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan. More efficient technology. The motor is powered by a PWM IC of the newest generation, which allows the new P14 PWM to run much more efficiently than its predecessors. This saves energy without compromising the performance. Maximum quietness, minimum vibration. Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor. 200-1700 rpm regulated via PWM. Thanks to the 4-Pin Connector, the rpm can be regulated in a broad spectrum via PWM. In this way, noise is kept at a minimum while maximum cooling performance is guaranteed when needed. Extended Life Span. A 10°C lower motor temperature roughly doubles the life span of a fan. Due to the low coil temperature of the new ARCTIC fan motors, the service life of the fans increases considerably. Therefore, manufacturer gives the warranty of 6 years. Two way installation. Push warm air out of the case. Pull cool air into your case.
Specifications: Speed: 200-1700 rpm. Air flow: 72.8 CFM / 123.76 m³ / h. Static pressure: 2.40 (mm/H2O). Noise level: 0.3 Sone. Bearing: fluid dynamic bearing. Voltage / current 0.12A / 12V DC. Starting voltage: 3.9V. Connector: 4-Pin-Connector. Cable length: 400 mm. Color: white. Dimensions: 140x140x27 mm. Weight: 194 g.
Warranty: 6 years.
Features: Optimized for static pressure. During the development of the new P14 PWM, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P14 PWM is particularly suitable for use on heatsinks and radiators. High quality bearing. Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan. More efficient technology. The motor is powered by a PWM IC of the newest generation, which allows the new P14 PWM to run much more efficiently than its predecessors. This saves energy without compromising the performance. Maximum quietness, minimum vibration. Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor. 200-1700 rpm regulated via PWM. Thanks to the 4-Pin Connector, the rpm can be regulated in a broad spectrum via PWM. In this way, noise is kept at a minimum while maximum cooling performance is guaranteed when needed. Extended Life Span. A 10°C lower motor temperature roughly doubles the life span of a fan. Due to the low coil temperature of the new ARCTIC fan motors, the service life of the fans increases considerably. Therefore, manufacturer gives the warranty of 6 years. Two way installation. Push warm air out of the case. Pull cool air into your case.
Specifications: Speed: 200-1700 rpm. Air flow: 72.8 CFM / 123.76 m³ / h. Static pressure: 2.40 (mm/H2O). Noise level: 0.3 Sone. Bearing: fluid dynamic bearing. Voltage / current 0.12A / 12V DC. Starting voltage: 3.9V. Connector: 4-Pin-Connector. Cable length: 400 mm. Color: white. Dimensions: 140x140x27 mm. Weight: 194 g.
Warranty: 6 years.
Item specifics
- Вес 194 g
- Винты в комплекте Да
- Воздушный поток 123,76 m³/h
- Высота 27 mm
- Высота упаковки 29 mm
- Глубина 140 mm
- Глубина упаковки 143 mm
- Диаметр вентилятора 14 cm
- Длина кабеля 0,4 m
- Код гармонизированной системы описания (HS) 84733080
- Количество в упаковке 1 шт
- Количество вентиляторов 1 вентилятор(ы)
- Количество винтов 4
- Количество лопастей вентилятора 5
- Коннектор вентилятора 4-контактный
- Максимальное давление воздуха 2,4 mmH2O
- Максимальный воздушный поток 72,8 cfm
- Масса брутто 234 g
- Напряжение 12 V
- Номинальный ток 0,12 A
- Поддерживаемые сокеты процессоров Не поддерживается
- Поддержка широтно-импульсной модуляции (ШИМ) Да
- Подходящее расположение Корпус компьютера
- Потребляемая мощность (в обычном режиме) 1,44 W
- Пусковое напряжение 3,9 V
- Скорость вращения (макс.) 1700 RPM
- Скорость вращения (мин.) 200 RPM
- Совместимые серии процессоров Не поддерживается
- Тип Вентилятор
- Тип подшипника Fluid Dynamic Bearing (FDB)
- Тип упаковки Коробочная версия
- Уровень шума 0,3 сон
- Цвет товара Белый
- Ширина 140 mm
- Ширина упаковки 143 mm
