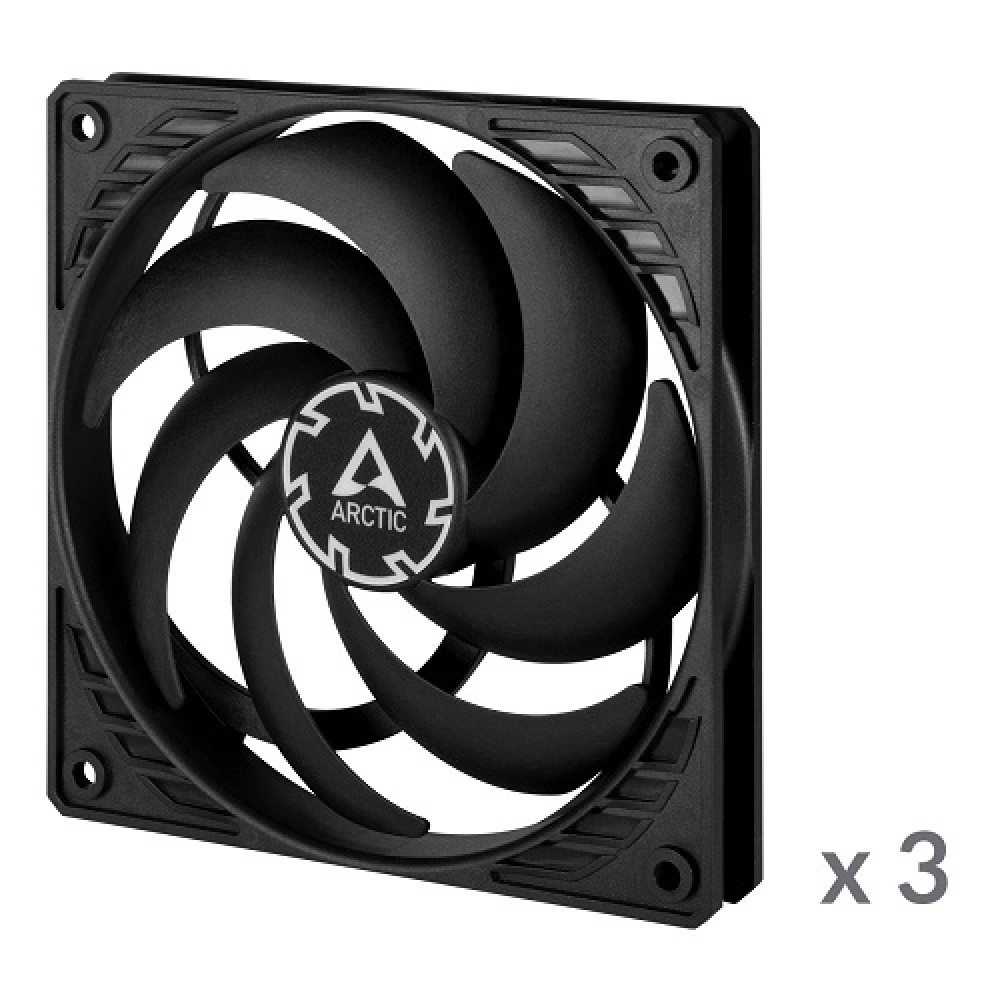

ARCTIC P12 Slim PWM PST Fans, 4-pin, 120mm, black, 3pcs
€28.99
Maksa 3-s võrdses osas
3 x 9.66 € / kuus.
3 x 9.66 € / kuus.
Järelmaks 6 kuud
4.83 € / kuus.
4.83 € / kuus.
Kategooriad
Ostukorv
Konto
Otsing
Hiljutine vaatamine
Kõik kategooriad
×
- CPU
- Hair Clippers
- Home Automation
- Juurdepääsusüsteemid
- Mixers
- Network Cameras
- Server Cables
- Switches
-
Teine
- Air Conditioners
- Compact Photocameras
- Desktop POS
- Electric Car Charging
- Fan Heaters
- Fans
- Fiber Optic Cables
- Gimbal Accessories
- Handheld PDA
- HDD Video Surveillance
- Kiosk SCO
- Mobile POS
- POS Accessories
- POS Printers
- Power Strips
- Rugged Notebook Accessories
- Solar Inverters
- Water Pumps & Washers
- Windows Cleaning Robots
- Toothbrush Heads
- TV Mount Accessories
- Wireless Cameras
- Wireless Network Adapters
- Wireless Routers
Ostukorv
×
Teie ostukorv on tühi!
Minu konto
×
Otsing
×
Hiljutised vaadatud tooted
×
Kirjeldus
PWM Fan with Cable Splitter P12 Slim PWM PST, 4-pin, 120mm, black, set of 3 pcs.
Features: Ideal for small spaces.Unlike standard 120 mm case fans with a thickness of 25 mm, the P12 Slim PWM PST has a mounting depth of only 15 mm. This makes it the ideal choice for Small Form Factor (SFF) builds. Corresponding screws for mounting on a radiator are already included. 300 to 2100 rpm controlled via PWM PST. With a wide speed range and innovative PWM Sharing Technology (PST), the P12 Slim PWM PST's fan speed can be controlled in sync with other fans. ARCTIC's PST fans come equipped with their own built-in daisy-chain solution, and, in addition to the plug-in connector, have another socket to which an additional fan or up to four other PST fans can be connected in series. High-quality sleeve bearing. Thanks to a combination of alloy and lubricant developed in Germany, friction within the bearing is minimized and greater efficiency is achieved. In addition to preventing lubricant loss, wear on the pin and sleeve is also reduced to a minimum. Less heat is developed, less bearing noise is generated and the life of the fan is extended significantly. Optimised for static pressure. Because the fan design of the P12 Slim PWM PST is optimised for focused airflow, it generates high static pressure. The fan enables extremely efficient cooling and good airflow - even with increased air resistance. This makes the P12 Slim PWM PST particularly well-suited for use on concealed case intakes, dust filters, radiators, and generally in small cases that have little space for free airflow due to compactly placed hardware. Maximum quietness, minimum vibration. The operating noise of the newly-developed ARCTIC motor is barely perceptible, even at the lowest speed. Thanks to its special magnetization, the motor of the P-fans generates no start-up jerks and only a fraction of the commutation vibrations of a conventional DC motor. As a result, there is far less vibration on the housing at different speeds and no need for rubber buffering or additional decoupling. Improved service life. The new ARCTIC motor generates significantly less frictional heat than its predecessors and current competitor models. As a result, coil temperature is reduced by up to 20 degrees, quadrupling service life, while reduced frictional losses ensure more efficient operation. 0dB Mode - Zero rpm. The speed of the P12 Slim PWM PST can be throttled down to a standstill via PWM. This allows efficient and silent PC operation in idle while guaranteeing maximum performance on demand.
Specifications: Fan speed: 300-2100 RPM (0 rpm below 9% PWM). Air flow: 34.51 CFM / 58.62 m³/h. Static pressure: 1.33 (mm / H2O). Noise level: 0.3 Sone. Fan bearing: Fluid dynamic bearing. Current / voltage: 0.12A / 12V DC. Connection: 4-pin connector. Cable length: 400+80 mm. Size: 120x120x15 mm. Weight: 85 g. Set includes 3 pcs.
Warranty: 6 years.
Features: Ideal for small spaces.Unlike standard 120 mm case fans with a thickness of 25 mm, the P12 Slim PWM PST has a mounting depth of only 15 mm. This makes it the ideal choice for Small Form Factor (SFF) builds. Corresponding screws for mounting on a radiator are already included. 300 to 2100 rpm controlled via PWM PST. With a wide speed range and innovative PWM Sharing Technology (PST), the P12 Slim PWM PST's fan speed can be controlled in sync with other fans. ARCTIC's PST fans come equipped with their own built-in daisy-chain solution, and, in addition to the plug-in connector, have another socket to which an additional fan or up to four other PST fans can be connected in series. High-quality sleeve bearing. Thanks to a combination of alloy and lubricant developed in Germany, friction within the bearing is minimized and greater efficiency is achieved. In addition to preventing lubricant loss, wear on the pin and sleeve is also reduced to a minimum. Less heat is developed, less bearing noise is generated and the life of the fan is extended significantly. Optimised for static pressure. Because the fan design of the P12 Slim PWM PST is optimised for focused airflow, it generates high static pressure. The fan enables extremely efficient cooling and good airflow - even with increased air resistance. This makes the P12 Slim PWM PST particularly well-suited for use on concealed case intakes, dust filters, radiators, and generally in small cases that have little space for free airflow due to compactly placed hardware. Maximum quietness, minimum vibration. The operating noise of the newly-developed ARCTIC motor is barely perceptible, even at the lowest speed. Thanks to its special magnetization, the motor of the P-fans generates no start-up jerks and only a fraction of the commutation vibrations of a conventional DC motor. As a result, there is far less vibration on the housing at different speeds and no need for rubber buffering or additional decoupling. Improved service life. The new ARCTIC motor generates significantly less frictional heat than its predecessors and current competitor models. As a result, coil temperature is reduced by up to 20 degrees, quadrupling service life, while reduced frictional losses ensure more efficient operation. 0dB Mode - Zero rpm. The speed of the P12 Slim PWM PST can be throttled down to a standstill via PWM. This allows efficient and silent PC operation in idle while guaranteeing maximum performance on demand.
Specifications: Fan speed: 300-2100 RPM (0 rpm below 9% PWM). Air flow: 34.51 CFM / 58.62 m³/h. Static pressure: 1.33 (mm / H2O). Noise level: 0.3 Sone. Fan bearing: Fluid dynamic bearing. Current / voltage: 0.12A / 12V DC. Connection: 4-pin connector. Cable length: 400+80 mm. Size: 120x120x15 mm. Weight: 85 g. Set includes 3 pcs.
Warranty: 6 years.
Item specifics
- Вес 85 g
- Винты в комплекте Да
- Воздушный поток 71,53 m³/h
- Высота 15 mm
- Высота упаковки 14 mm
- Глубина 120 mm
- Глубина упаковки 123 mm
- Диаметр вентилятора 12 cm
- Длина кабеля 0,48 m
- Код гармонизированной системы описания (HS) 84733080
- Количество в упаковке 3 шт
- Количество вентиляторов 1 вентилятор(ы)
- Максимальное давление воздуха 1,45 mmH2O
- Максимальный воздушный поток 41,1 cfm
- Масса брутто 345 g
- Материал Пластик
- Монтажный комплект Да
- Напряжение 12 V
- Номинальный ток 0,12 A
- Поддерживаемые сокеты процессоров Не поддерживается
- Поддержка широтно-импульсной модуляции (ШИМ) Да
- Подходящее расположение Корпус компьютера
- Пусковое напряжение 4 V
- Скорость вращения (макс.) 2100 RPM
- Скорость вращения (мин.) 300 RPM
- Совместимые серии процессоров Не поддерживается
- Технология подшипников вентилятора Fluid Dynamic Bearing (FDB)
- Тип Вентилятор
- Тип подшипника Fluid Dynamic Bearing (FDB)
- Тип упаковки Коробочная версия
- Уровень шума 0,3 сон
- Цвет товара Черный
- Ширина 120 mm
- Ширина упаковки 53 mm
