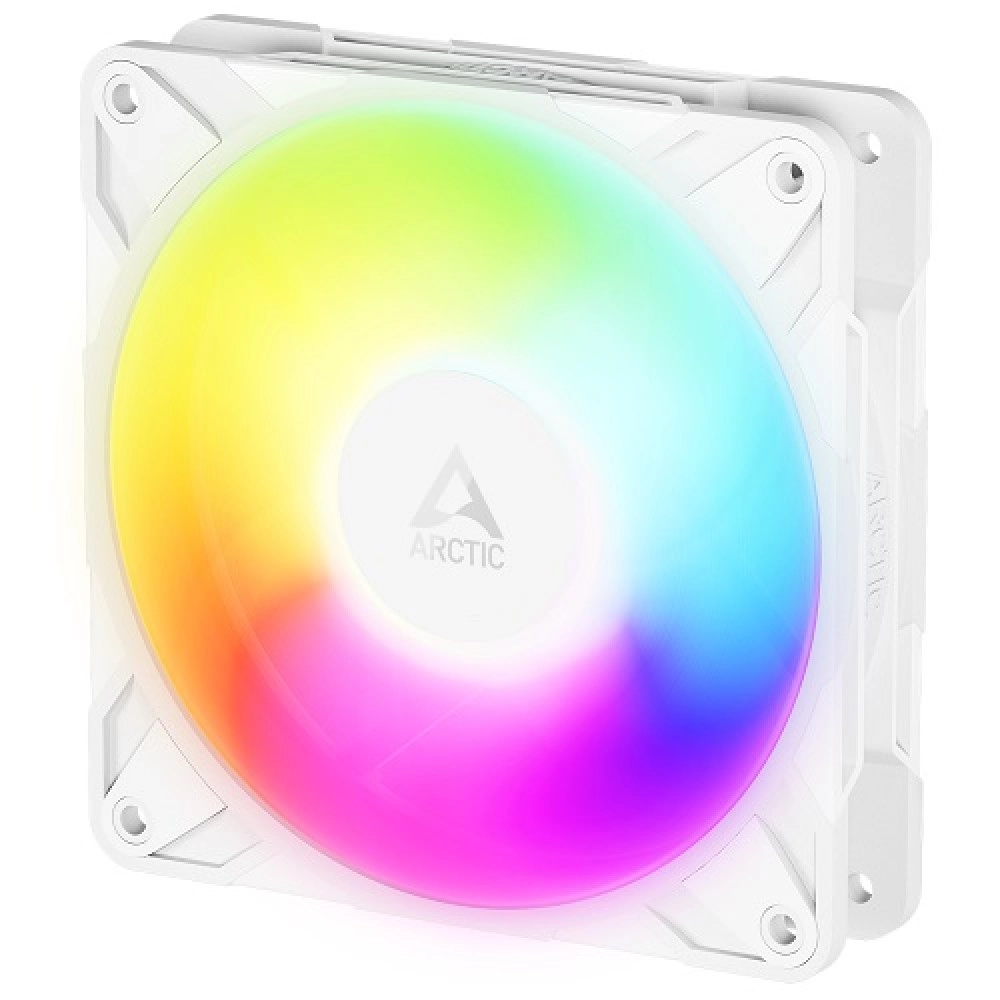

ARCTIC P12 PRO Reverse PWM PST A-RGB High-Performance PWM Fan, 4-pin, 120 mm (White)
€19.03
Maksa 3-s võrdses osas
3 x 6.34 € / kuus.
3 x 6.34 € / kuus.
Järelmaks 6 kuud
3.17 € / kuus.
3.17 € / kuus.
Kategooriad
Ostukorv
Konto
Otsing
Hiljutine vaatamine
Kõik kategooriad
×
- CPU
- Hair Clippers
- Home Automation
- Juurdepääsusüsteemid
- Mixers
- Network Cameras
- Server Cables
- Switches
-
Teine
- Air Conditioners
- Compact Photocameras
- Desktop POS
- Electric Car Charging
- Fan Heaters
- Fans
- Fiber Optic Cables
- Gimbal Accessories
- Handheld PDA
- HDD Video Surveillance
- Kiosk SCO
- Mobile POS
- POS Accessories
- POS Printers
- Power Strips
- Rugged Notebook Accessories
- Solar Inverters
- Water Pumps & Washers
- Windows Cleaning Robots
- Toothbrush Heads
- TV Mount Accessories
- Wireless Cameras
- Wireless Network Adapters
- Wireless Routers
Ostukorv
×
Teie ostukorv on tühi!
Minu konto
×
Otsing
×
Hiljutised vaadatud tooted
×
Kirjeldus
PWM Fan P12 Pro Reverse A-RGB, 4-pin, 120mm, white with A-RGB.
Features: Reversed Airflow. The P12 Pro Reverse is specifically designed for air intake from the back side. It's particularly suitable when conventional fans would compromise the aesthetics. Efficient Performance at High Air Resistance. Thanks to high static pressure, the Pro fans move air effectively through tight spaces. This makes them ideal for radiators, perforated panels, and mesh filters. PST – PWM-Based Synchronized Fan Control. An additional PWM connector allows multiple fans to be synchronized in series using a single header. Optimized Bearing-Shaft Design (FDB). A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations. SOTA Microcontroller. Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity. More Power – Less Noise. An automated measuring and balancing process ensures smooth performance by applying the balancing compound with pinpoint accuracy. Optimized Airflow Design. The trumpet-shaped intake and teardrop-shaped spokes direct the airflow with reduced flow losses. This reduces air resistance, minimising turbulence and aerodynamic noise. Minimum Gap Dimensions for Maximum Efficiency. Enables higher static pressure and maximum airflow efficiency.
Specifications: Fan speed: 500-3000 RPM PWM controlled, 0 rpm below 5 % PWM. Air flow: 73 CFM / 124 m³/h. Static pressure: 4.5 (mm / H2O). Fan bearing: Fluid Dynamic Bearing. Current / voltage: 0.4A/ 12V DC. Connection: 4-Pin Fan Plug + 4-Pin Socket. Cable length: 400 mm + 80 mm Daisy-Chain Cable. LED: 12x A-RGB Gen2. RGB voltage/ current: 5V DC/ 0.40A. LED connector: 3-Pin A-RGB Plug + 3-Pin Socket. Size: 120x120x25 mm. Weight: 172 g. Color: white body, optional lighting.
Warranty: 6 years.
Features: Reversed Airflow. The P12 Pro Reverse is specifically designed for air intake from the back side. It's particularly suitable when conventional fans would compromise the aesthetics. Efficient Performance at High Air Resistance. Thanks to high static pressure, the Pro fans move air effectively through tight spaces. This makes them ideal for radiators, perforated panels, and mesh filters. PST – PWM-Based Synchronized Fan Control. An additional PWM connector allows multiple fans to be synchronized in series using a single header. Optimized Bearing-Shaft Design (FDB). A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations. SOTA Microcontroller. Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity. More Power – Less Noise. An automated measuring and balancing process ensures smooth performance by applying the balancing compound with pinpoint accuracy. Optimized Airflow Design. The trumpet-shaped intake and teardrop-shaped spokes direct the airflow with reduced flow losses. This reduces air resistance, minimising turbulence and aerodynamic noise. Minimum Gap Dimensions for Maximum Efficiency. Enables higher static pressure and maximum airflow efficiency.
Specifications: Fan speed: 500-3000 RPM PWM controlled, 0 rpm below 5 % PWM. Air flow: 73 CFM / 124 m³/h. Static pressure: 4.5 (mm / H2O). Fan bearing: Fluid Dynamic Bearing. Current / voltage: 0.4A/ 12V DC. Connection: 4-Pin Fan Plug + 4-Pin Socket. Cable length: 400 mm + 80 mm Daisy-Chain Cable. LED: 12x A-RGB Gen2. RGB voltage/ current: 5V DC/ 0.40A. LED connector: 3-Pin A-RGB Plug + 3-Pin Socket. Size: 120x120x25 mm. Weight: 172 g. Color: white body, optional lighting.
Warranty: 6 years.
Item specifics
- Вес вентилятора 172 g
- Винты в комплекте Да
- Воздушный поток 124 m³/h
- Высота упаковки 32 mm
- Гарантийный срок 6 лет
- Глубина упаковки 127 mm
- Диаметр вентилятора 12 cm
- Диапазон температур при эксплуатации 0 - 40 °C
- Длина кабеля 0,48 m
- Количество в упаковке 1 шт
- Количество вентиляторов 1 вентилятор(ы)
- Количество винтов 4
- Количество лопастей вентилятора 5
- Коннектор вентилятора 4-pin + 4-pin
- Максимальный воздушный поток 73 cfm
- Масса брутто 210 g
- Напряжение вентилятора 12 V
- Напряжение светодиодов 5 V
- Поддержка широтно-импульсной модуляции (ШИМ) Да
- Подходящее расположение Корпус компьютера
- Пусковое напряжение 3,5 V
- Размеры вентилятора (Ш х Г х В) 120 x 120 x 27 mm
- Светодиодная подсветка Да
- Сила тока вентилятора 0,4 A
- Скорость вращения вентилятора (макс) 3000 RPM
- Скорость вращения вентилятора (мин) 500 RPM
- статическое давление вентилятора 4,5 mmH2O
- Тип Вентилятор
- Тип подшипника Fluid Dynamic Bearing (FDB)
- Тип разъема светодиода 3-pin + 3-pin
- Тип упаковки Коробочная версия
- Цвет освещения Мульти
- Цвет товара Белый
- Ширина упаковки 125 mm
