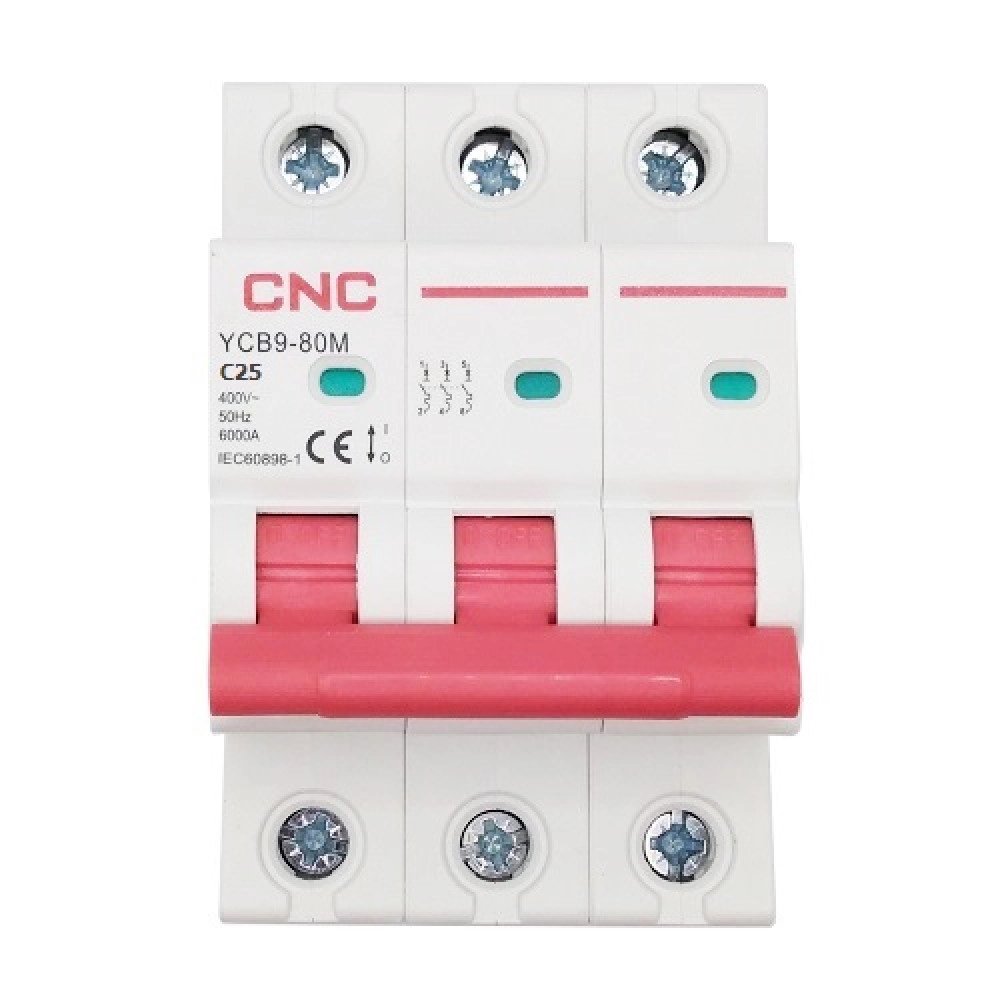

Miniature Circuit Breaker, 3P, 25A, Class C, 6kA

Miniature Circuit Breaker, 3P, 25A, Class C, 6kA Features: Protection against overload. Short circuit protection. Anti-mistake contact terminal block. Flame retardant, high temperature resistance and impact resistance. Contact position indication (red indicated closed, green indicates opened).
Specifications: Number of contacts: 3. Rated current (In): 25 A. Class: C. Rated voltage (Ue): AC 400 V. Insulation voltage (Ui): 500 V. Rated frequency: 50/60 Hz. Rated breaking capacity (Icu): 6000 A. Rated impulse withstand voltage (Uimp): 6000 V. Mechanical life: 20000 times. Electrical life: 8000 times. Safety class: IP20. Terminal connection type: cable / pin-type busbar. Wire/busbar cross-sectional area: up to 25mm² / 18-3 AWG. Connection: from top and bottom. Installation: on DIN rail EN 60715 (35mm) by means of fast clip device. Operating temperature: -5°C~+40°C (with daily average <35°C). Storage temperature: -25°C~+70°C. Dimensions: 85.5 x 78.8 x 54 mm. Standards: IEC 60898-1 / EN 60898-1.
Warranty: 24 months.
