Product Description

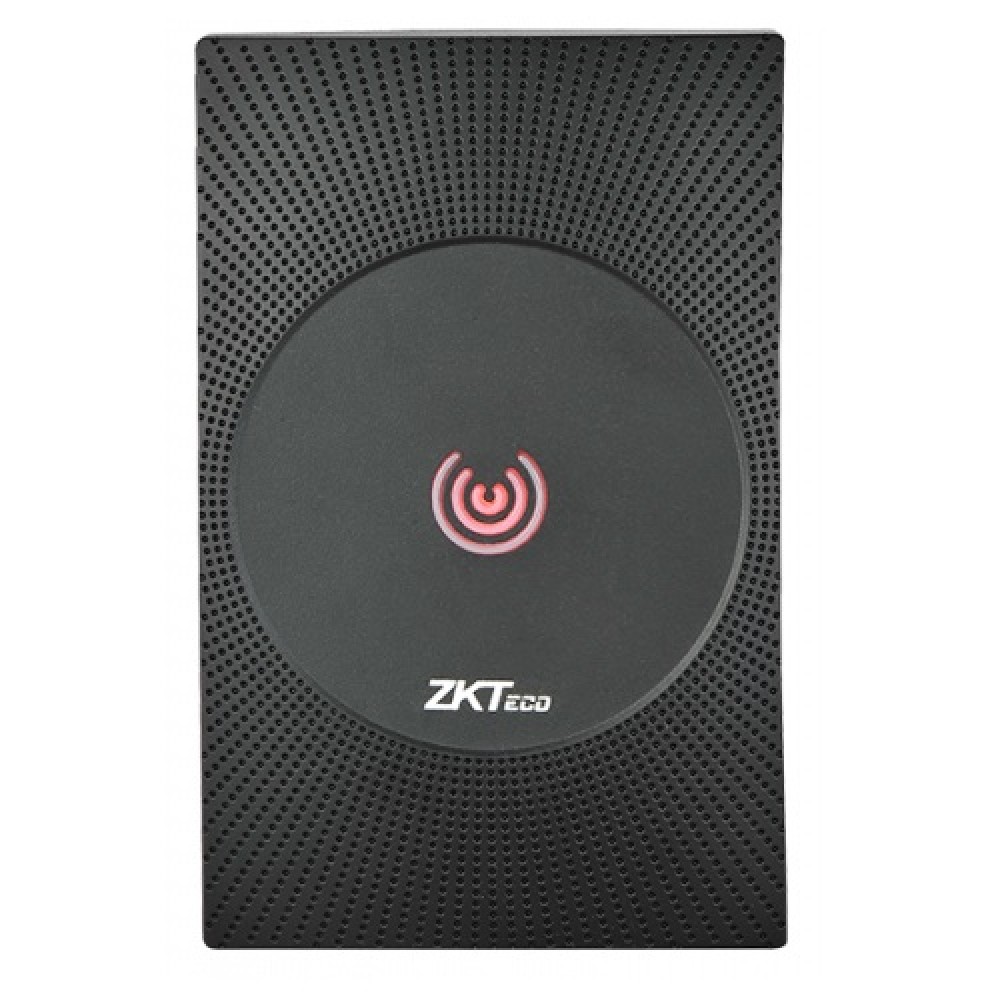

RFID card reader 13.56MHz (Mifare, Desfire), Wiegand 66.
Features:
13.56 MHz ISO14443A card reader suitable for Mifare and Desfire cards.
With its elegant and robust design, the reader is easy to plug in and install and can be easily mounted on a metal door frame.
Supports one door control from both sides. LED (red, green) indicator shows allowed / denied access.
IP65 waterproof and with an operating temperature range of -20°C to +65°C, it is suitable for both indoor and outdoor installation.
Technical specification:
Operating frequency: 13.56 MHz.
Compatible with: Mifare, Desfire.
Scanning distance: up to 5 cm.
Scan speed: up to 300ms.
Output protocol: Wiegand 66bit.
Current: <70mA.
Voltage: 6-14V DC.
Safety class: IP65.
Material: ABS, PC.
Operating temperature: -20°C~+65°C.
Operating humidity: 10% - 90% RH.
Dimensions: 75 x 116 x 16mm.
Cable length: 1.5m.
Warranty: 24 months.
Tootja: ZKTeco Europe S.R.L
Mudel: KR610D
