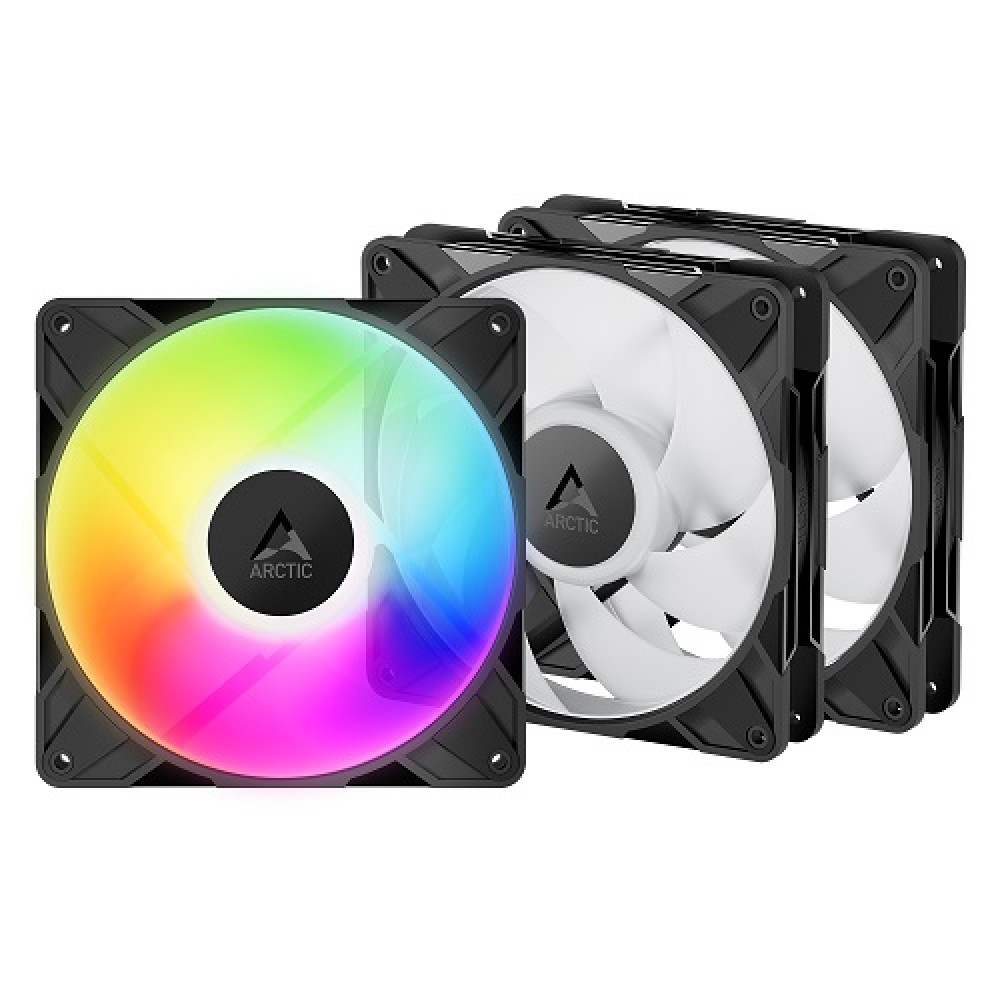

ARCTIC P14 PRO PWM PST A-RGB High-Performance Fans, 4-pin, 140mm, 3pcs
€46.25
Tasu 3-s võrdses osas, ilma ühegi lisatasuta.
3 x €15.42 / kuus.
3 x €15.42 / kuus.
Product Description
PWM Fan P14 Pro A-RGB, 4-pin, 140mm, black with A-RGB, 3-Pack.
Features: Efficient Performance at High Air Resistance. Thanks to high static pressure, the Pro fans move air effectively through tight spaces. This makes them ideal for radiators, perforated panels, and mesh filters. PST – PWM-Based Synchronized Fan Control. An additional PWM connector allows multiple fans to be synchronized in series using a single header. Maximum Performance. Revised fan blade design for an optimal balance of performance and smooth operation Optimized Bearing-Shaft Design (FDB). A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations. Automated two-Plane Balancing. An automated two-level measuring and balancing process ensures exceptional precision and smooth performance by applying the balancing mass with pinpoint accuracy at two different depth levels. SOTA Microcontroller. Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity. More Power – Less Noise. The fan delivers more performance at low speeds with higher airflow and static pressure at just 25 dB(A) – ideal for quiet, powerful cooling. Minimum Gap Dimensions for Maximum Efficiency. Enables higher static pressure and maximum airflow efficiency.
Specifications: Fan speed: 400-2500 RPM PWM controlled, 0 rpm below 5 % PWM. Air flow: 110 CFM / 186 m³/h. Static pressure: 5.2 (mm / H2O). Fan bearing: Fluid Dynamic Bearing. Current / voltage: 0.35A / 12V DC. Connection: 4-Pin Fan Plug + 4-Pin Socket. Cable length: 400 mm + 80 mm Daisy-Chain Cable. LED: 12x A-RGB Gen2. RGB voltage/ current: 5V DC/ 0.40A. LED connector: 3-Pin A-RGB Plug + 3-Pin Socket. Size: 140x140x27 mm. Color: black body, optional lighting. Weight: 237 g (x3). Set includes 3 pcs.
Warranty: 6 years.
Features: Efficient Performance at High Air Resistance. Thanks to high static pressure, the Pro fans move air effectively through tight spaces. This makes them ideal for radiators, perforated panels, and mesh filters. PST – PWM-Based Synchronized Fan Control. An additional PWM connector allows multiple fans to be synchronized in series using a single header. Maximum Performance. Revised fan blade design for an optimal balance of performance and smooth operation Optimized Bearing-Shaft Design (FDB). A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations. Automated two-Plane Balancing. An automated two-level measuring and balancing process ensures exceptional precision and smooth performance by applying the balancing mass with pinpoint accuracy at two different depth levels. SOTA Microcontroller. Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity. More Power – Less Noise. The fan delivers more performance at low speeds with higher airflow and static pressure at just 25 dB(A) – ideal for quiet, powerful cooling. Minimum Gap Dimensions for Maximum Efficiency. Enables higher static pressure and maximum airflow efficiency.
Specifications: Fan speed: 400-2500 RPM PWM controlled, 0 rpm below 5 % PWM. Air flow: 110 CFM / 186 m³/h. Static pressure: 5.2 (mm / H2O). Fan bearing: Fluid Dynamic Bearing. Current / voltage: 0.35A / 12V DC. Connection: 4-Pin Fan Plug + 4-Pin Socket. Cable length: 400 mm + 80 mm Daisy-Chain Cable. LED: 12x A-RGB Gen2. RGB voltage/ current: 5V DC/ 0.40A. LED connector: 3-Pin A-RGB Plug + 3-Pin Socket. Size: 140x140x27 mm. Color: black body, optional lighting. Weight: 237 g (x3). Set includes 3 pcs.
Warranty: 6 years.
Tootja: Arctic GmbH
Mudel: ACFAN00320A
Tehnilised andmed
Винты в комплекте
Jah
Воздушный поток
186 m³/h
Pakendi kõrgus
86 mm
Pakendi sügavus
147 mm
Диаметр вентилятора
14 cm
Диапазон температур при эксплуатации
0 - 40 °C
Длина кабеля
0,48 m
Количество в упаковке
3 шт
Количество винтов
14
Количество светодиодов
12
Коннектор вентилятора
4-pin + 4-pin
Максимальное давление воздуха
5,2 mmH2O
Максимальный воздушный поток
110 cfm
Brutokaal
711 g
Напряжение светодиодов
5 V
Номинальное напряжение
12 V
Номинальный ток
0,35 A
Поддержка широтно-импульсной модуляции (ШИМ)
Jah
Подходящее расположение
Корпус компьютера
Пусковое напряжение
5 V
Размеры вентилятора (Ш х Г х В)
140 x 140 x 27 mm
Светодиодная подсветка
Jah
Скорость вращения (макс.)
2500 RPM
Скорость вращения (мин.)
400 RPM
Тип
Вентилятор
Тип подшипника
Fluid Dynamic Bearing (FDB)
Тип разъема светодиода
3-контактный
Цвет освещения
Мульти
Värv
Must
Ширина упаковки
144 mm
